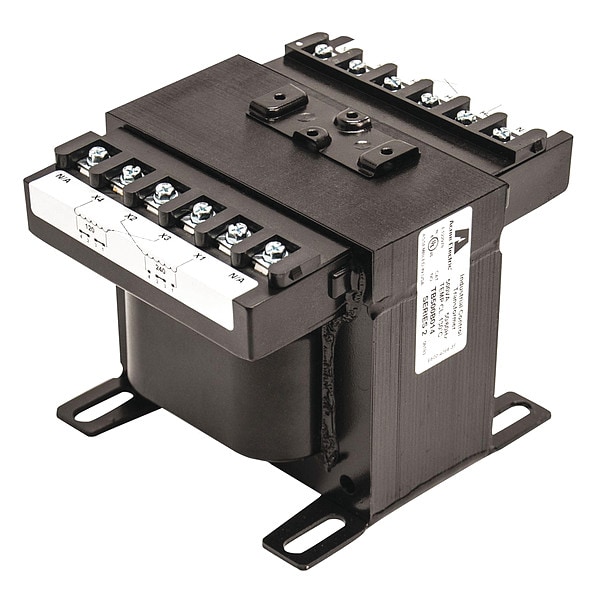

Control Transformer, 2 kVA, Not Rated, 100/120V AC, 240/480/600V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480/600V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Color | Black |
| Protective Device | Primary and Secondary Fuse |
| Enclosure Style - Transformer | Open |
| Depth | 7.98 in |
| Standards | cUL Listed, UL Listed |
| Temp. Rise | Not Rated |
| Width | 7 in |
| Phase - Electrical | 1 |
| Enclosure Finish | Epoxy Resin Varnish |
| Output Voltage - Transformer | 100/120V AC |
| Manufacturers Warranty Length | 20 yr |
| VA Rating - Transformer | 2 kVA |
| Height | 6.68 in |
| Includes | Factory Installed Primary Fuse Block and Secondary Fuse Clips |
| Weight | 57.7 lb |
| Primary Voltage | 240/480/600 V |
| Certified Listed | UL ListedcUL Listed |
| Carton Quantity | 1 |
| Pallet Quantity | 24 |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants; Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency; Integrally molded terminal blocks with isolation barriers to prevent arc over |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Package Quantity | 1 |
