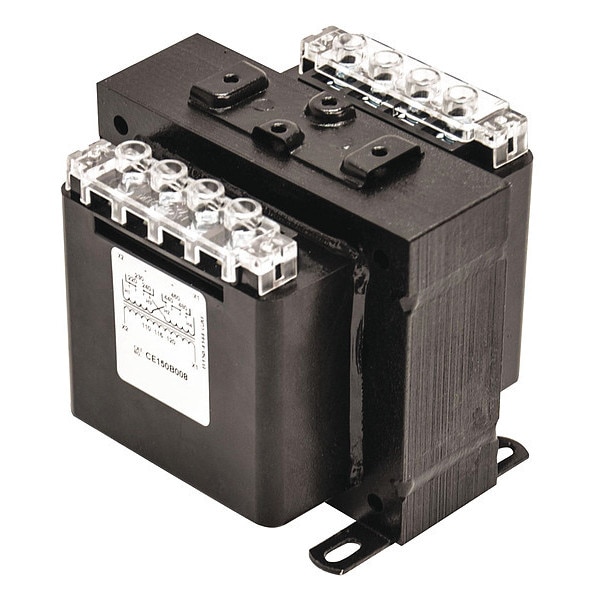

Control Transformer, 300 VA, Not Rated, 110/115/120V AC, 550/575/600V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 550/575/600V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Temp. Rise | Not Rated |
| Output Voltage - Transformer | 110/115/120V AC |
| VA Rating - Transformer | 300 VA |
| Width | 4-1/2 in |
| Height | 4.38 in |
| Depth | 4 in |
| Phase - Electrical | 1 |
| Manufacturers Warranty Length | 20 yr |
| Standards | cUL Listed, UL Listed |
| Protective Device | None |
| Enclosure Finish | Epoxy Resin Varnish |
| Enclosure Style - Transformer | Open, Finger-Safe |
| Includes | Not Applicable |
| Weight | 5.75 lb |
| Certified Listed | UL ListedcUL Listed |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Pallet Quantity | 72 |
| Construction | Encapsulated |
| Primary Voltage | 550/575/600 V |
| Carton Quantity | 1 |
| Package Quantity | 1 |
