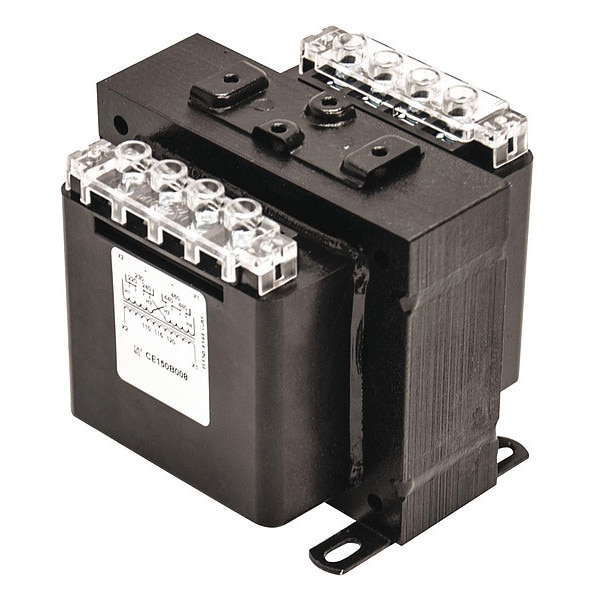

Control Transformer, 300 VA, Not Rated, 24V AC, 240/480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Width | 4-1/2 in |
| Enclosure Finish | Epoxy Resin Varnish |
| Manufacturers Warranty Length | 20 yr |
| Height | 4.38 in |
| Depth | 4 in |
| Temp. Rise | Not Rated |
| Protective Device | None |
| Enclosure Style - Transformer | Open, Finger-Safe |
| Standards | cUL Listed, UL Listed |
| Output Voltage - Transformer | 24V AC |
| VA Rating - Transformer | 300 VA |
| Phase - Electrical | 1 |
| Includes | Not Applicable |
| Weight | 5.75 lb |
| Carton Quantity | 1 |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Certified Listed | UL ListedcUL Listed |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants; Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency |
| Pallet Quantity | 72 |
| Construction | Encapsulated |
| Package Quantity | 1 |
