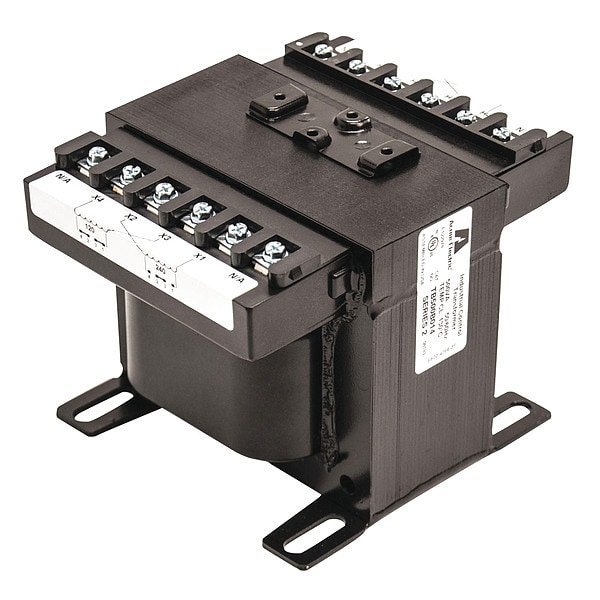

Control Transformer, 500 VA, Not Rated, 100/120V AC, 240/480/600V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 240/480/600V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Color | Black |
| Enclosure Finish | Epoxy Resin Varnish |
| Depth | 5-3/4 in |
| Standards | cUL Listed, UL Listed |
| Phase - Electrical | 1 |
| Height | 5.91 in |
| Enclosure Style - Transformer | Open |
| Protective Device | Primary and Secondary Fuse |
| VA Rating - Transformer | 500 VA |
| Manufacturers Warranty Length | 20 yr |
| Width | 5-1/4 in |
| Temp. Rise | Not Rated |
| Output Voltage - Transformer | 100/120V AC |
| Includes | Factory Installed 2 Pole Class CC Primary Fuse Block |
| Weight | 17.6 lb |
| Primary Voltage | 240/480/600 V |
| Application | Acme's CE Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants; Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency; Integrally molded terminal blocks with isolation barriers to prevent arc over |
| Pallet Quantity | 48 |
| Certified Listed | UL ListedcUL Listed |
| Carton Quantity | 1 |
| For Fuse Class | CC |
| Package Quantity | 1 |
