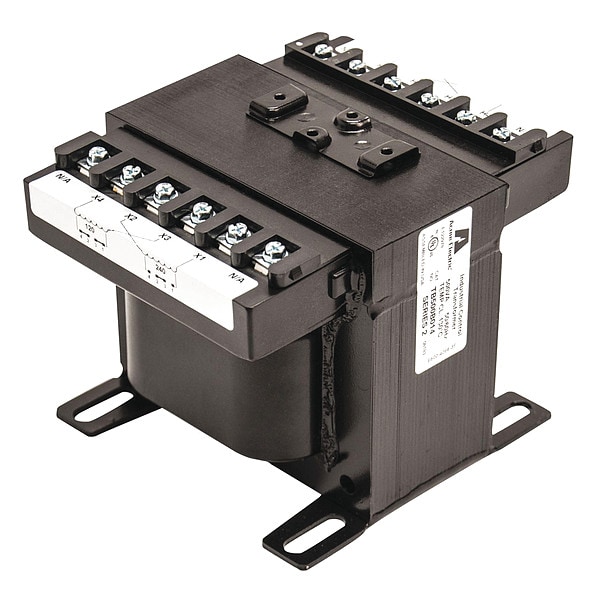

Control Transformer, 500 VA, Not Rated, 115/24V AC, 208/230/460V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208/230/460V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Color | Black |
| Manufacturers Warranty Length | 20 yr |
| Standards | cUL Listed, UL Listed |
| Enclosure Finish | Epoxy Resin Varnish |
| Output Voltage - Transformer | 115/24V AC |
| Protective Device | Primary and Secondary Fuse |
| Temp. Rise | Not Rated |
| Height | 5.91 in |
| Phase - Electrical | 1 |
| Enclosure Style - Transformer | Open |
| VA Rating - Transformer | 500 VA |
| Width | 5-1/4 in |
| Depth | 6.42 in |
| Includes | Factory Installed Primary Fuse Block and Secondary Fuse Clips |
| Weight | 23.1 lb |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Certified Listed | UL ListedcUL Listed |
| Pallet Quantity | 48 |
| Primary Voltage | 208/230/460 V |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants; Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency; Integrally molded terminal blocks with isolation barriers to prevent arc over |
| Carton Quantity | 1 |
| Package Quantity | 1 |
