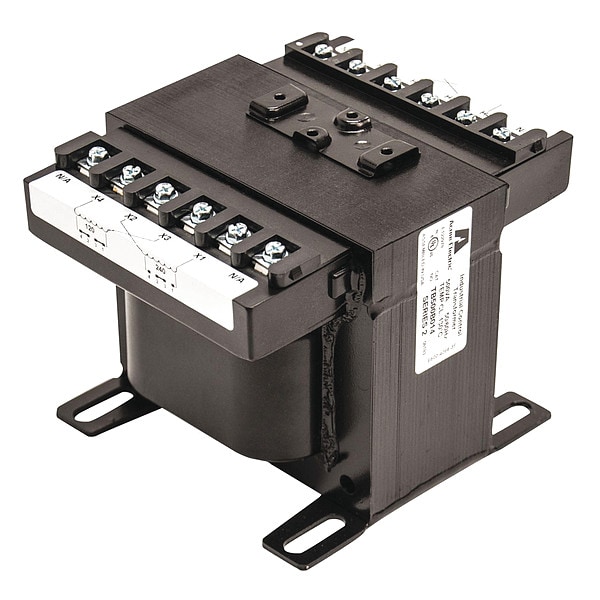

Control Transformer, 500 VA, Not Rated, 120V AC, 208/277V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208/277V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Color | Black |
| Depth | 5.17 in |
| Height | 5.91 in |
| Protective Device | Primary and Secondary Fuse |
| Enclosure Finish | Epoxy Resin Varnish |
| Manufacturers Warranty Length | 20 yr |
| Temp. Rise | Not Rated |
| VA Rating - Transformer | 500 VA |
| Width | 5-1/4 in |
| Standards | cUL Listed, UL Listed |
| Phase - Electrical | 1 |
| Enclosure Style - Transformer | Open |
| Output Voltage - Transformer | 120V AC |
| Includes | Factory Installed Primary Fuse Block and Secondary Fuse Clips |
| Weight | 17.4 lb |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants; Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency; Integrally molded terminal blocks with isolation barriers to prevent arc over |
| Carton Quantity | 1 |
| Pallet Quantity | 48 |
| Primary Voltage | 208/277 V |
| Certified Listed | UL ListedcUL Listed |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Package Quantity | 1 |
