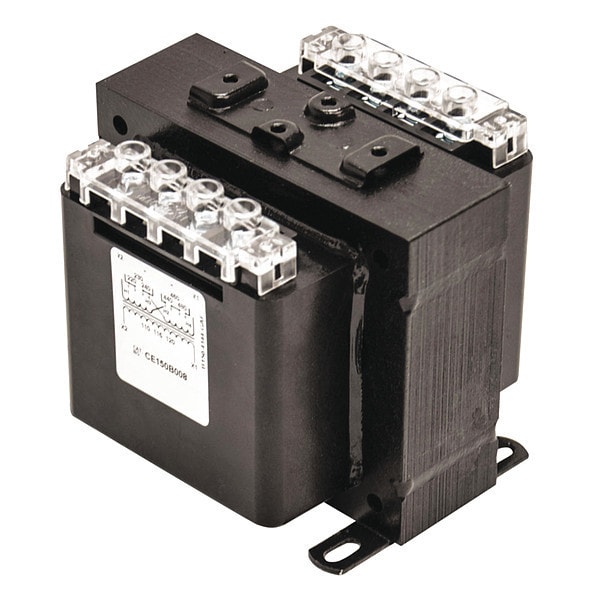

Control Transformer, 500 VA, Not Rated, 120V AC, 240V AC, 480V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 480V AC, 240V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50, 60 |
| VA Rating - Transformer | 500 VA |
| Mounting - Transformer | Foot, Plate |
| Phase - Electrical | 1 |
| Depth | 4-1/2 in |
| Output Voltage - Transformer | 120V AC |
| Standards | cUL |
| Protective Device | None |
| Manufacturers Warranty Length | 20 yr |
| Temp. Rise | Not Rated |
| Enclosure Finish | Epoxy Resin Varnish |
| Height | 5.43 in |
| Item - Transformer | Control Transformer |
| Width | 5-1/4 in |
| Enclosure Style - Transformer | Open, Finger-Safe |
| Weight | 20 lb |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Carton Quantity | 1 |
| Secondary Voltage | 110, 115, 120 V |
| Length | 9 in |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants |
| Dimensions | 9 in x 9 in x 8 in |
| Pallet Quantity | 48 |
| Frequency Rating | 50/60 Hz |
| Construction | Encapsulated |
| Primary Voltage | 220, 230, 240 X 440, 460, 480 V |
| Certified Listed | UL ListedcUL Listed |
| Package Quantity | 1 |
