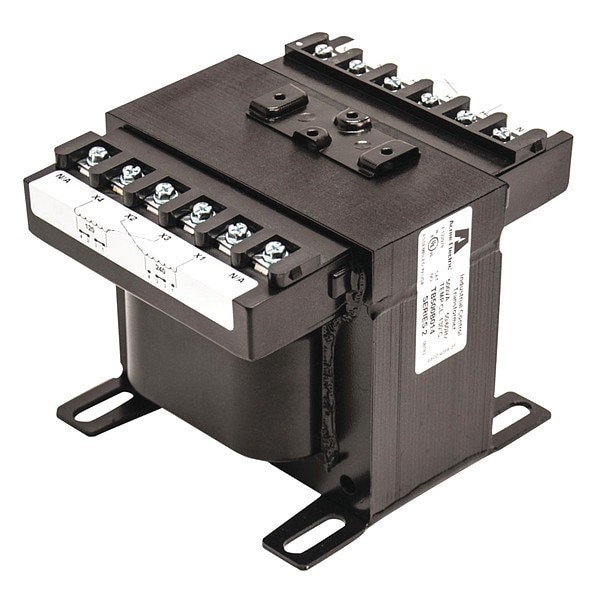

Control Transformer, 750 VA, 120V AC, 208V AC, 277V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208V AC, 277V AC |
| Output Voltage | 120V AC |
| Power Rating | 750 VA |
| Phase | Single |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50, 60 |
| Overall Height | 5-1/4 in |
| Overall Width | 4.66 in |
| Overall Depth | 6.42 in |
| Item - Transformer | Control Transformer |
| Manufacturers Warranty Length | 20 yr |
| Height | 7.61 in |
| Width | 5-1/4 in |
| Protective Device | None |
| Includes | Factory Installed Secondary Fuse Clip |
| Input Voltage | 208V AC, 277V AC |
| Enclosure Finish | Epoxy Resin Varnish |
| Enclosure Style - Transformer | Open |
| Standards | cUL Listed, UL Listed |
| Depth | 5.14 in |
| Temp. Rise | Not Rated |
| Mounting - Transformer | Foot, Plate |
| VA Rating - Transformer | 750 VA |
| Phase - Electrical | 1 |
| Output Voltage - Transformer | 120V AC |
| Weight | 26.5 lb |
| Construction | Encapsulated |
| Certified Listed | UL ListedcUL Listed |
| Secondary Voltage | 120 V |
| Pallet Quantity | 48 |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Carton Quantity | 1 |
| Primary Voltage | 208/277 V |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants; Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency; Integrally molded terminal blocks with isolation barriers to prevent arc over |
| Frequency Rating | 50/60 Hz |
| Enclosure Style | Open |
| Frequency | 50/60 Hz |
| Temperature Rise | Not Rated |
| Package Quantity | 1 |
