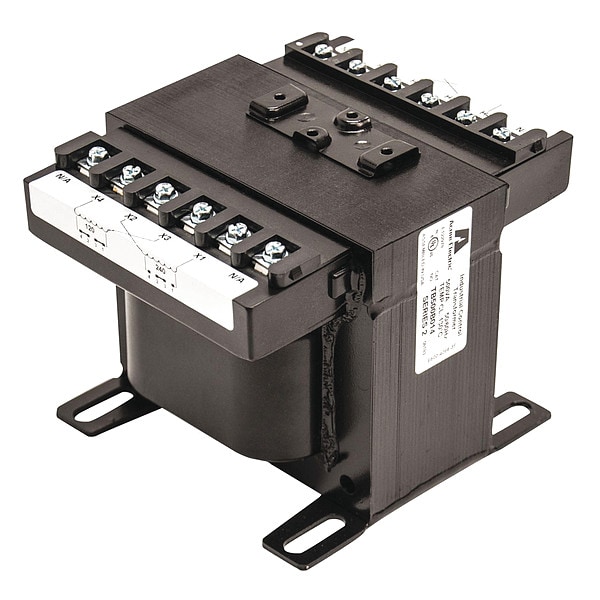

Control Transformer, 750 VA, Not Rated, 120V AC, 208/277V AC
| Item | Control Transformer |
|---|---|
| Input Voltage - Transformer | 208/277V AC |
| Mounting - Transformer | Foot, Plate |
| Hz - Electrical | 50/60 Hz |
| Color | Black |
| Manufacturers Warranty Length | 20 yr |
| Height | 5.91 in |
| Protective Device | Primary and Secondary Fuse |
| Enclosure Finish | Epoxy Resin Varnish |
| Depth | 6.42 in |
| VA Rating - Transformer | 750 VA |
| Temp. Rise | Not Rated |
| Output Voltage - Transformer | 120V AC |
| Enclosure Style - Transformer | Open |
| Phase - Electrical | 1 |
| Standards | cUL Listed, UL Listed |
| Width | 5-1/4 in |
| Includes | Factory Installed Primary Fuse Block and Secondary Fuse Clips |
| Weight | 26.5 lb |
| Pallet Quantity | 48 |
| Certified Listed | UL ListedcUL Listed |
| Carton Quantity | 1 |
| Primary Voltage | 208/277 V |
| Application | Acme's TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer's windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme's TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Features | Encapsulated design protects core & coil assembly from potentially damaging contaminants; Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency; Integrally molded terminal blocks with isolation barriers to prevent arc over |
| Package Quantity | 1 |
