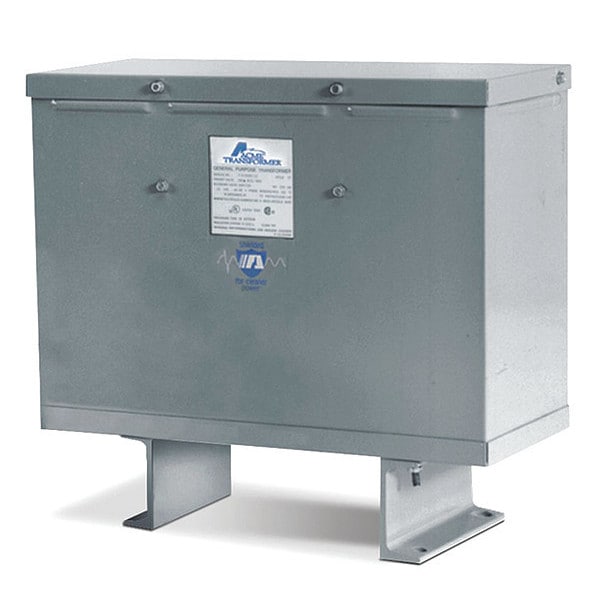

General Purpose Transformer, 75 kVA, NEMA 3R, 115°C, 120/208V, 480V
| Item | General Purpose Transformer |
|---|---|
| Input Voltage - Transformer | 480V |
| Mounting - Transformer | Floor |
| Hz - Electrical | 60 |
| Height | 26.82 in |
| Winding Material - Transformer | Aluminum |
| VA Rating - Transformer | 75 kVA |
| Phase - Electrical | 3 |
| Enclosure Rating | NEMA 3R |
| Temp. Rise | 115 deg C |
| Width | 34.68 in |
| Output Voltage - Transformer | 120/208V |
| Depth | 15-1/4 in |
| Max Temperature Rise | 115 Degrees Celsius |
| UL Insulation Class | 180°C |
| Taps % Steps | 0.025 |
| Primary Voltage | 480D V |
| Construction | Encapsulated |
| UL Standard | UL 506 |
| Material type | ZFIN |
| ANFC Taps | 2 |
| BNFC Taps | 4 |
| CSA Standard | C22.2 No. 47 |
| Electrostatic Shield | Shielded |
| Product Category | Dry Type Distribution Transformer |
| Carton Quantity | 1 |
| Package Quantity | 1 |
