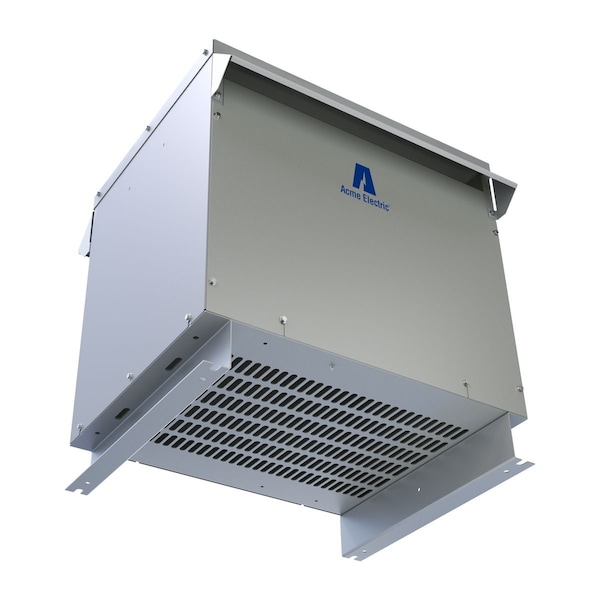

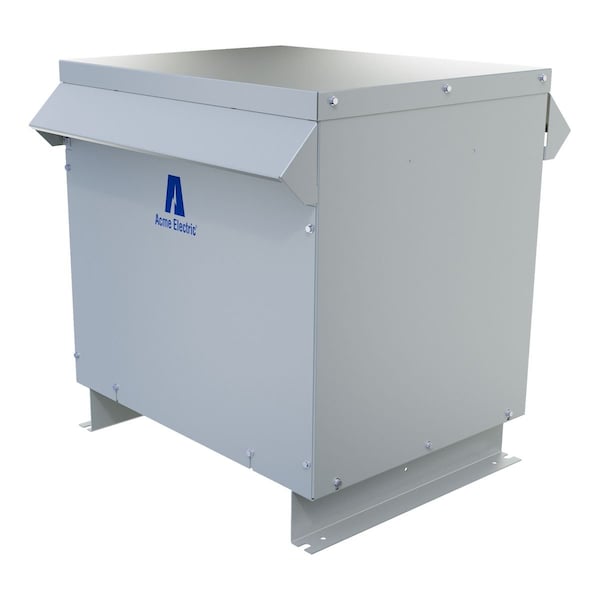

Low Voltage Distribution Transformer, 112.5 kVA, NEMA 3R, 115°C, 120/208V AC, 480V AC
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 480V AC |
| Mounting - Transformer | Floor |
| Hz - Electrical | 60 |
| IP Rating | IP14 |
| Outdoor Rated - Transformer | Yes |
| Winding Material | Aluminum |
| Color | Gray |
| Phase - Electrical | 3 |
| Winding Material - Transformer | Aluminum |
| Enclosure Material | Steel |
| Includes | Weathershield |
| Width | 31.9 in |
| Depth | 26.88 in |
| Voltage Function - Transformer | Step Down |
| Standards | CSA C22.2 No. 47, Meets or Exceed U.S. DOE 10 CFR Part 431, UL 1561 |
| Enclosure Rating | NEMA 3R |
| Knockout Size - Transformer | No Knockout |
| Temp. Rise | 115 deg C |
| Output Voltage - Transformer | 120/208V AC |
| VA Rating - Transformer | 112.5 kVA |
| Height | 35.47 in |
| Enclosure Finish | Powder Polyurethane Paint |
| UL Standard | UL 1561 |
| Primary Voltage | 480D V |
| CSA Standard | C22.2 No. 47 |
| BNFC Taps | 4 |
| Max Temperature Rise | 115 Degrees Celsius |
| UL Insulation Class | 180°C |
| Material type | ZFIN |
| Efficiency | 0.9874 |
| Dept of Energy Regulation | Meets or exceed U.S. DOE 10 CFR Part 431 |
| Taps % Steps | 0.025 |
| Construction | Ventilated |
| ANFC Taps | 2 |
| Electrostatic Shield | Shielded |
| Product Category | Dry Type Distribution Transformer |
| Sound Level | 50 dB |
| Includes Knockouts | No Knockouts |
| Package Quantity | 1 |
