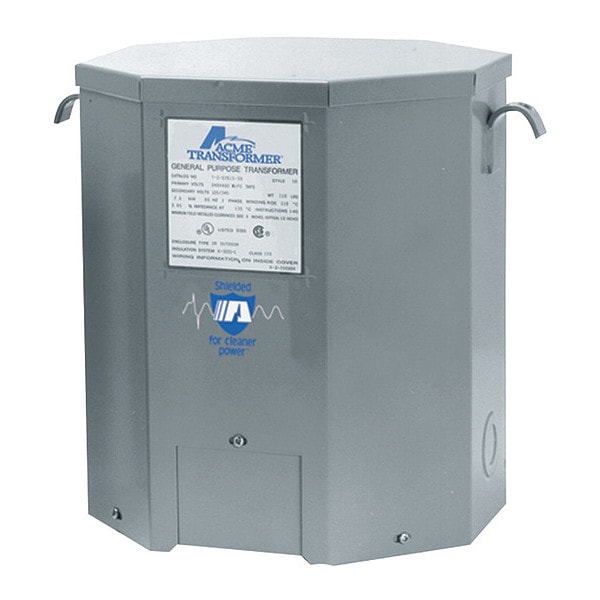

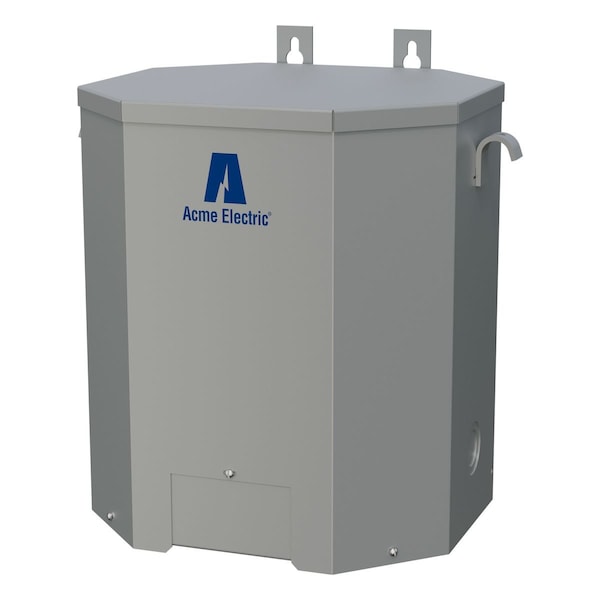

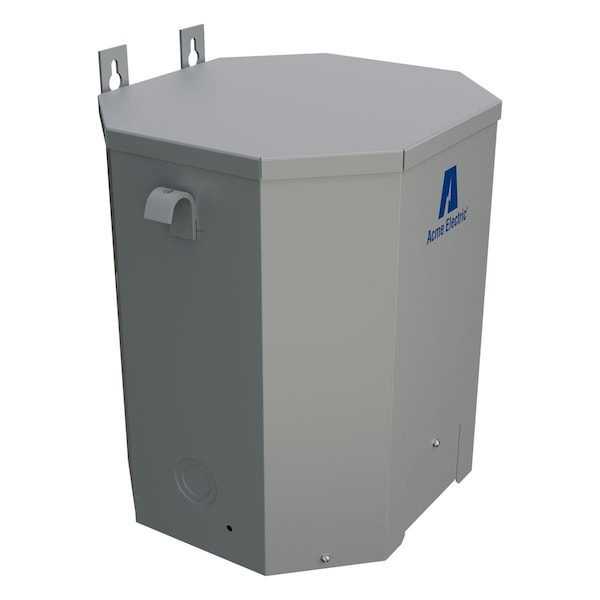

Low Voltage Distribution Transformer, 15 kVA, NEMA 3R, 115°C, 120/240V AC, 240/480V AC
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Wall |
| Hz - Electrical | 60 |
| IP Rating | IP14 |
| Outdoor Rated - Transformer | Yes |
| Winding Material | Copper |
| Color | Gray |
| Height | 16.94 in |
| Winding Material - Transformer | Aluminum |
| Knockout Size - Transformer | 1 in, 1-1/2 in |
| Output Voltage - Transformer | 120/240V AC |
| Enclosure Finish | Powder Polyurethane Paint |
| Temp. Rise | 115 deg C |
| Enclosure Material | Steel |
| Standards | CSA C22.2 No. 47, UL 506 |
| Voltage Function - Transformer | Step Down |
| Phase - Electrical | 1 |
| Manufacturers Warranty Length | 10 yr |
| Width | 14.12 in |
| Enclosure Rating | NEMA 3R |
| VA Rating - Transformer | 15 kVA |
| Depth | 11.57 in |
| Includes | Not Applicable |
| Insulation Max. Temp. | 180 °C |
| Taps % Steps | 0.025 |
| UL Standard | UL 506 |
| Construction | Encapsulated |
| CSA Standard | C22.2 No. 47 |
| Max Temperature Rise | 115 Degrees Celsius |
| Primary Voltage | 240 X 480 |
| BNFC Taps | 4 |
| ANFC Taps | 2 |
| Product Category | Dry Type Distribution Transformer |
| UL Insulation Class | 180°C |
| Electrostatic Shield | Shielded |
| Carton Quantity | 1 |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
