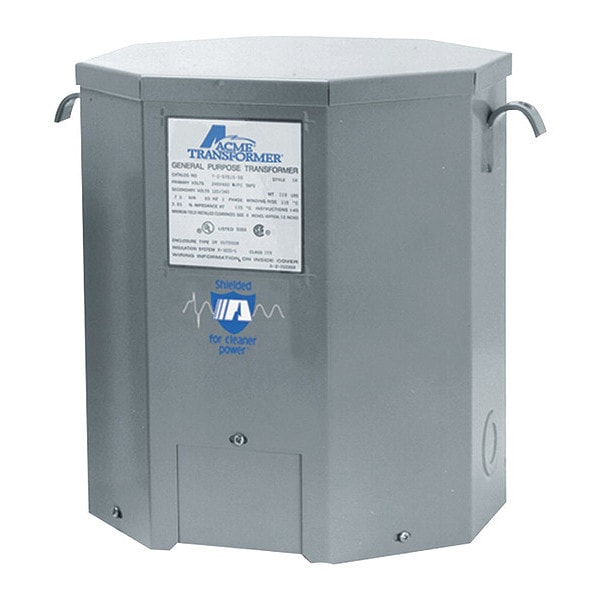

Low Voltage Distribution Transformer, 15 kVA, NEMA 3R, 115°C, 120/240V AC
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 190/200/208/220V, 380/400/416/440V |
| Mounting - Transformer | Wall |
| Hz - Electrical | 50/60 Hz |
| Height | 16.94 in |
| Width | 14.12 in |
| Temp. Rise | 115 deg C |
| VA Rating - Transformer | 15 kVA |
| Winding Material - Transformer | Aluminum |
| Output Voltage - Transformer | 120/240V AC |
| Depth | 11.59 in |
| Enclosure Type | Encapsulated |
| Enclosure Rating | NEMA 3R |
| Phase - Electrical | 1 |
| Standards | CSA C22.2 No. 47; UL 506 |
| Insulation Max. Temp. | 180 °C |
| Max Temperature Rise | 115 Degrees Celsius |
| Carton Quantity | 1 |
| CSA Standard | C22.2 No. 47 |
| Electrostatic Shield | Shielded |
| Primary Voltage | 190/200/208/220 X 380/400/416/440 V |
| Product Category | Dry Type Distribution Transformer |
| CE Compliant | CE Marked |
| UL Standard | UL 506 |
| Construction | Encapsulated |
| UL Insulation Class | 180°C |
| Package Quantity | 1 |
