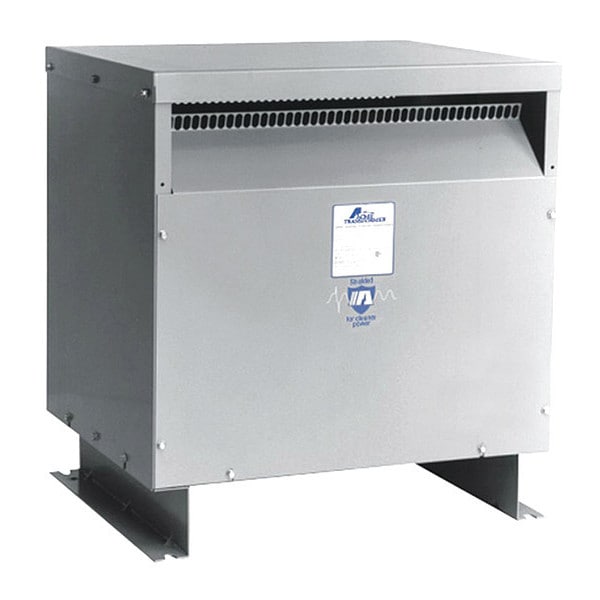

Low Voltage Distribution Transformer, 37.5 kVA, NEMA 3R, 115°C, 120/240V AC, 240/480V AC
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Floor |
| Hz - Electrical | 60 |
| Depth | 26.9 in |
| Width | 31.9 in |
| Height | 35.47 in |
| Winding Material - Transformer | Aluminum |
| Phase - Electrical | 1 |
| VA Rating - Transformer | 37.5 kVA |
| Temp. Rise | 115 deg C |
| Standards | CSA C22.2 No. 47; UL 506 |
| Enclosure Type | Non Ventilated |
| Output Voltage - Transformer | 120/240V AC |
| Enclosure Rating | NEMA 3R |
| Insulation Max. Temp. | 180 °C |
| Primary Voltage | 240 X 480 V |
| UL Standard | UL 506 |
| Product Category | Dry Type Distribution Transformer |
| Construction | Non Ventilated |
| Taps % Steps | 0.025 |
| Electrostatic Shield | Shielded |
| CSA Standard | C22.2 No. 47 |
| ANFC Taps | 2 |
| UL Insulation Class | 180°C |
| Max Temperature Rise | 115 Degrees Celsius |
| BNFC Taps | 2 |
| Package Quantity | 1 |
