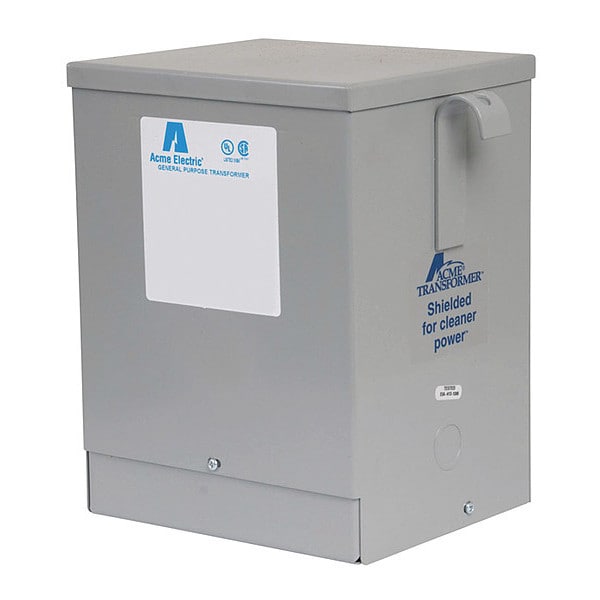

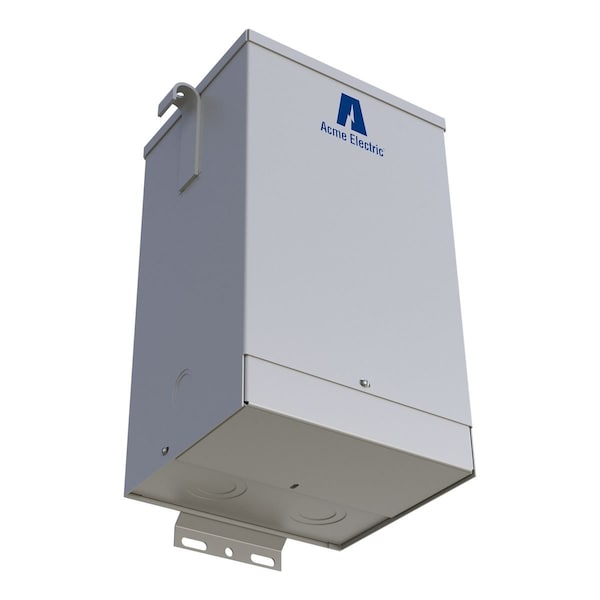

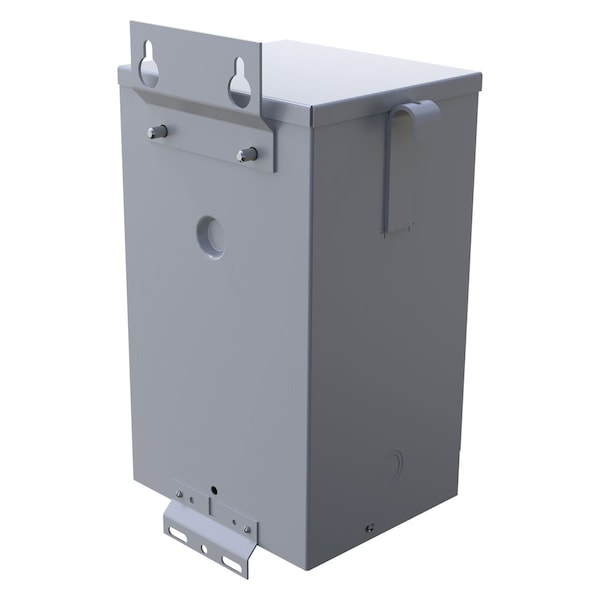

Low Voltage Distribution Transformer, 5 kVA, NEMA 3R, 115°C, 120/240V AC
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 190/200/208/220V, 380/400/416/440V |
| Mounting - Transformer | Wall |
| Hz - Electrical | 50/60 Hz |
| IP Rating | IP14 |
| Outdoor Rated - Transformer | Yes |
| Winding Material | Copper |
| Color | Gray |
| Enclosure Rating | NEMA 3R |
| Width | 10.31 in |
| Phase - Electrical | 1 |
| Knockout Size - Transformer | 3/4 in, 1-1/4 in |
| Depth | 7.1 in |
| Winding Material - Transformer | Copper |
| Height | 14.38 in |
| Manufacturers Warranty Length | 10 yr |
| VA Rating - Transformer | 5 kVA |
| Enclosure Material | Steel |
| Enclosure Finish | Powder Polyurethane Paint |
| Standards | CE, CSA C22.2 No. 47, UL 506 |
| Temp. Rise | 115 deg C |
| Output Voltage - Transformer | 120/240V AC |
| Voltage Function - Transformer | Step Down |
| Includes | Not Applicable |
| Insulation Max. Temp. | 180 °C |
| UL Insulation Class | 180°C |
| Construction | Encapsulated |
| Product Category | Dry Type Distribution Transformer |
| CSA Standard | C22.2 No. 47 |
| Max Temperature Rise | 115 Degrees Celsius |
| Electrostatic Shield | Shielded |
| Carton Quantity | 1 |
| Primary Voltage | 190 / 208 / 220 /240 X 380 / 416 / 440 / 480 V |
| UL Standard | UL 506 |
| CE Compliant | CE Marked |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
