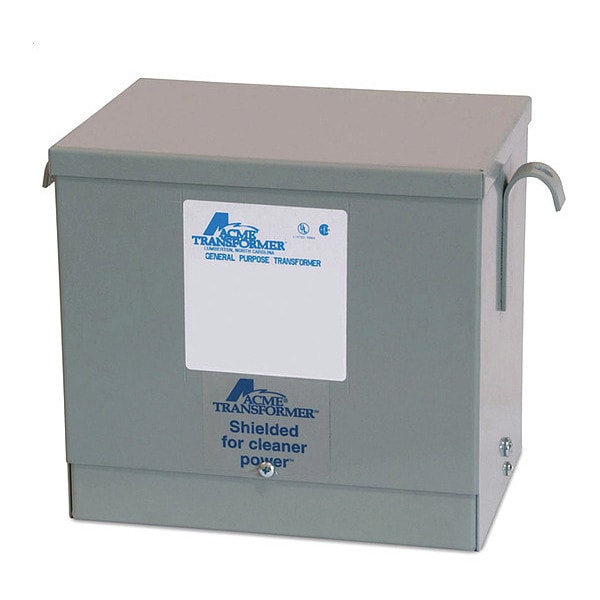

Low Voltage Distribution Transformer, 9 kVA, NEMA 3R, 115°C, 277/480V, 600V
| Item | Low Voltage Distribution Transformer |
|---|---|
| Input Voltage - Transformer | 600V |
| Mounting - Transformer | Wall |
| Hz - Electrical | 60 |
| Width | 17.77 in |
| VA Rating - Transformer | 9 kVA |
| Phase - Electrical | 3 |
| Enclosure Rating | NEMA 3R |
| Temp. Rise | 115 deg C |
| Output Voltage - Transformer | 277/480V |
| Depth | 11.52 in |
| Height | 14.03 in |
| Winding Material - Transformer | Aluminum |
| CSA Standard | C22.2 No. 47 |
| Construction | Encapsulated |
| Electrostatic Shield | Shielded |
| Material type | ZFIN |
| Primary Voltage | 600D V |
| Taps % Steps | 0.05 |
| BNFC Taps | 2 |
| Max Temperature Rise | 115 Degrees Celsius |
| UL Insulation Class | 180°C |
| UL Standard | UL 506 |
| Product Category | Dry Type Distribution Transformer |
| Features | Quiet operation with sound levels below NEMA standards; Electrostatic shield for enhanced protection |
| Package Quantity | 1 |
