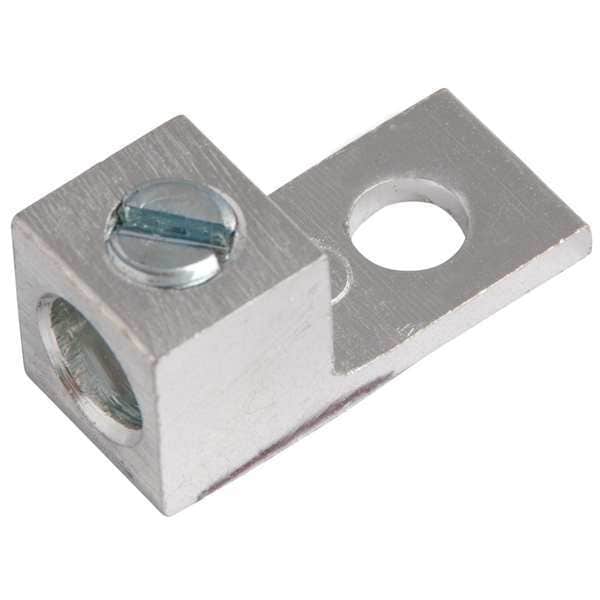

Conexión mecánica, de 250 kcmil a 14 AWG, paquete de 4.
| Item | Mechanical Connector |
|---|---|
| Connector Type | Transformer Lug Kit |
| No. of Conductors | 2 |
| Min. Conductor Size | 14 AWG Stranded/Solid |
| Max. Conductor Size | 250 kcmil Stranded/Solid |
| Stud Size | 21/64 in |
| Material | Aluminum |
| Length | 2 in |
| Width | 5-1/2 in |
| Standards | CSA Certified, UL Listed |
| Screw Material | Steel |
| Head Style | Hex |
| Body Material | Aluminum |
| Length (Straight Wireway) | 2 in |
| For Conductor Material | Aluminum |
| Hole Diameter | 0.33 in |
| Includes | (12) Lug, (8) Nuts and Bolts |
| Number of Conductors | 2 |
| Special Features | Contain All of the Hardware Necessary to Provide Satisfactory Transformer Terminations |
| Tongue Length | 1 in |
| Connection Orientation | Dual Rated Lug |
| Number of Terminations | 1 |
| Maximum Operating Temperature | 194 deg F |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| For Stud Size | 21/64 in |
| Maximum Voltage | 35 kV |
| Compatible with Product Type | Transformers |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| Overall Width | 7 in |
| Overall Length | 8.8 in |
| Hole Spacing | Not Applicable |
| Overall Depth | 8-13/16 in |
| Tongue Thickness | 1/4 in |
| Tongue Width | 1 in |
| Size | 8.8 in x 7 in x 8.8 in |
| Each - Width | 5.500 in |
| Height | 8.8 in |
| Product Type | Accessory |
| Dimensions | 8.8 in x 7 in x 8.8 in |
| Product Category | Accessories |
| Carton Quantity | 1 |
| Package Quantity | 4 |
