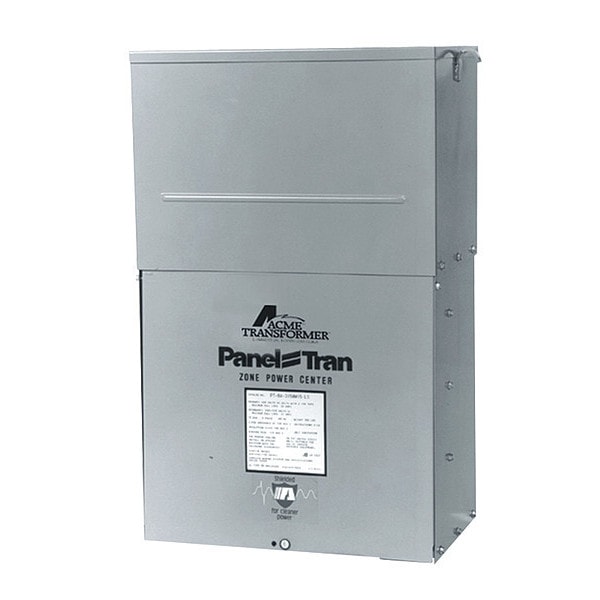

Toroidal Transformer, 9 kVA, NEMA 3R, 115°C, 120/208V, 480V
| Item | Toroidal Transformer |
|---|---|
| Input Voltage - Transformer | 480V |
| Mounting - Transformer | Wall |
| Hz - Electrical | 60 |
| Enclosure Rating | NEMA 3R |
| VA Rating - Transformer | 9 kVA |
| Output Voltage - Transformer | 120/208V |
| Temp. Rise | 115 deg C |
| Depth | 12.38 in |
| Height | 35.13 in |
| Phase - Electrical | 3 |
| Width | 22.13 in |
| Winding Material - Transformer | Copper |
| UL Insulation Class | 180°C |
| Max Temperature Rise | 115 Degrees Celsius |
| Each - Width | 22.13 in |
| Secondary Breaker | B330H (30A) |
| Electrostatic Shield | Shielded |
| BNFC Taps | 2 |
| Construction | Encapsulated |
| Taps % Steps | 0.05 |
| Frequency Rating | 60 Hz |
| Material type | ZFIN |
| Primary Breaker | ED43B025L (25A) |
| Product Category | Panel-Tran Zone Power Centers |
| Primary Voltage | 480D V |
| UL Standard | UL 1062 |
| CSA Standard | C22.2 No 47 |
| Package Quantity | 1 |
