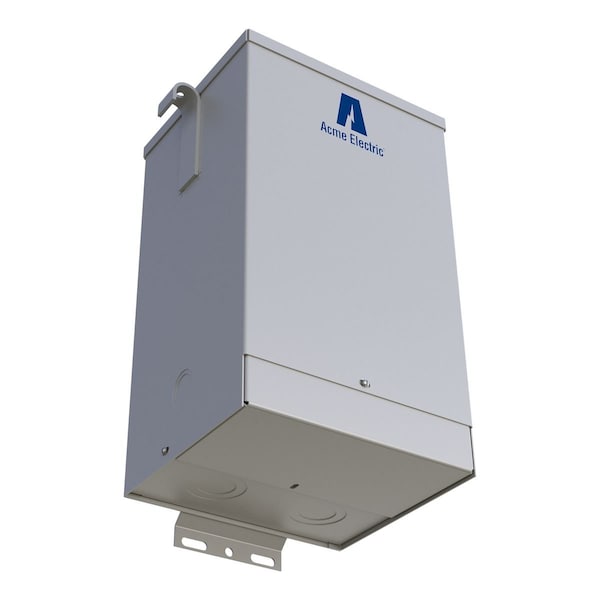

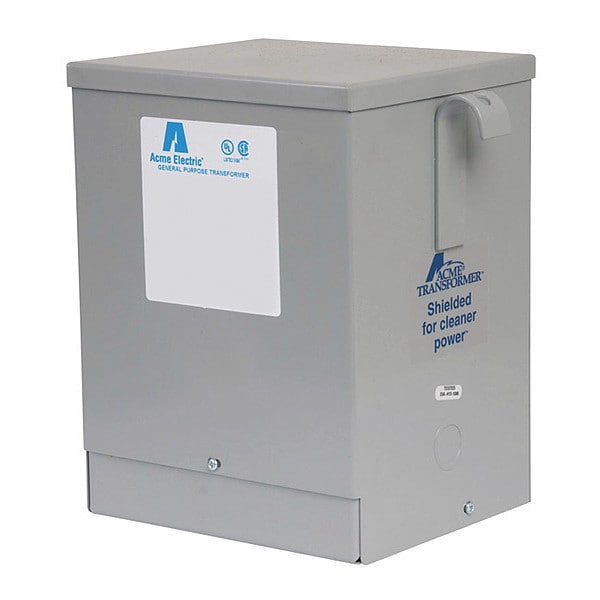

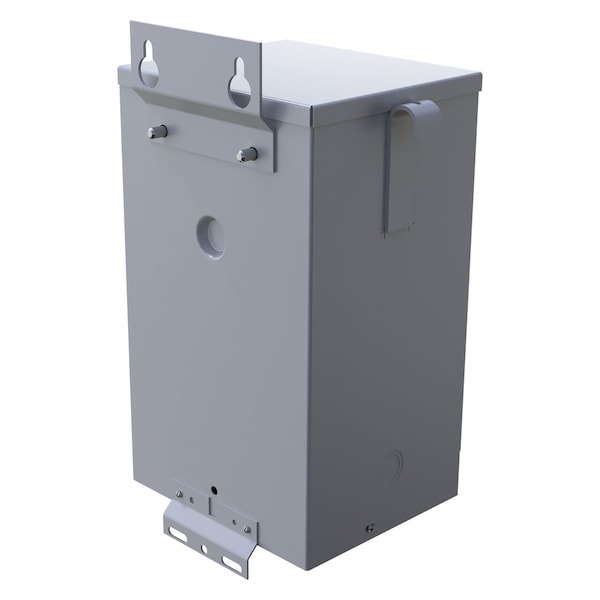

Transformer, Wall Mount, 1 Phase, 120V AC; 240V AC, 60 Hz, NEMA 3R, Steel, Powder Coated, Gray
| CAD Available | Yes |
|---|---|
| Item | Low Voltage Distribution Transformer |
| Input Voltage - Transformer | 240/480V AC |
| Mounting - Transformer | Wall |
| Hz - Electrical | 60 |
| IP Rating | IP14 |
| Outdoor Rated - Transformer | Yes |
| Winding Material | Copper |
| Color | Gray |
| Voltage Function - Transformer | Step Down |
| Temp. Rise | 115 deg C |
| VA Rating - Transformer | 3 kVA |
| Knockout Size - Transformer | 3/4 in, 1-1/4 in |
| Phase - Electrical | 1 |
| Enclosure Finish | Powder Polyurethane Paint |

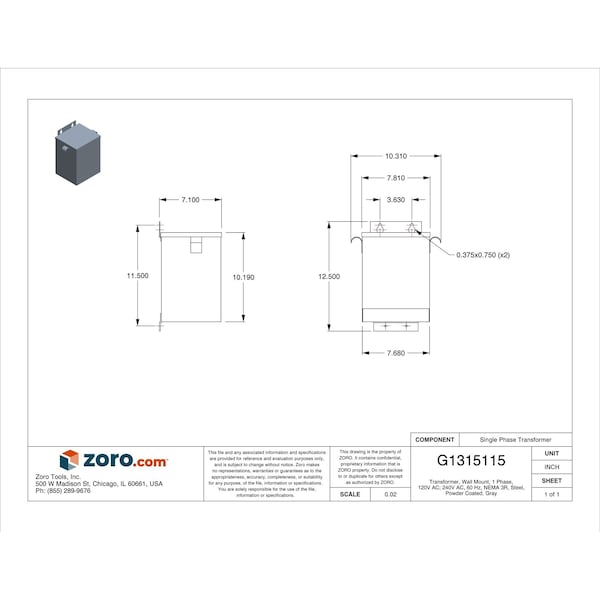

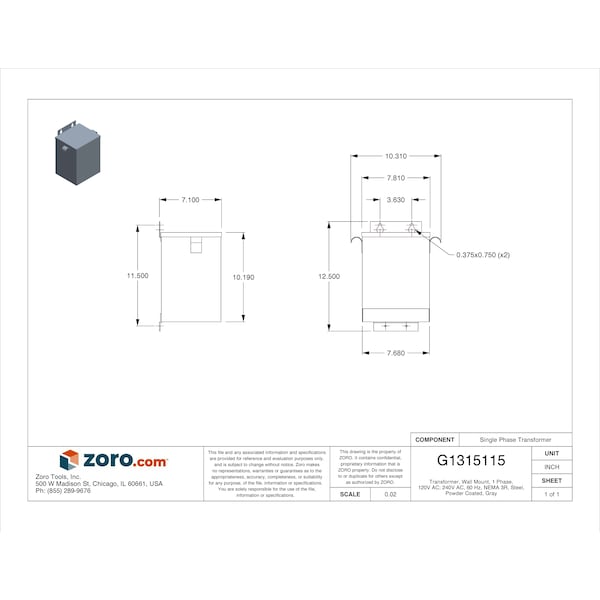

| Height | 11-1/2 in |
| Width | 10.31 in |
| Manufacturers Warranty Length | 10 yr |
| Enclosure Rating | NEMA 3R |
| Winding Material - Transformer | Copper |
| Enclosure Material | Steel |
| Output Voltage - Transformer | 120/240V AC |
| Standards | CSA C22.2 No. 47, UL 506 |
| Depth | 7.1 in |
| Includes | Not Applicable |
| Insulation Max. Temp. | 180 °C |
| Construction | Encapsulated |
| Carton Quantity | 1 |
| CSA Standard | C22.2 No. 47 |
| UL Insulation Class | 180°C |
| Max Temperature Rise | 115 Degrees Celsius |
| UL Standard | UL 506 |
| Electrostatic Shield | Shielded |
| Primary Voltage | 240 X 480 V |
| Product Category | Dry Type Distribution Transformer |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
