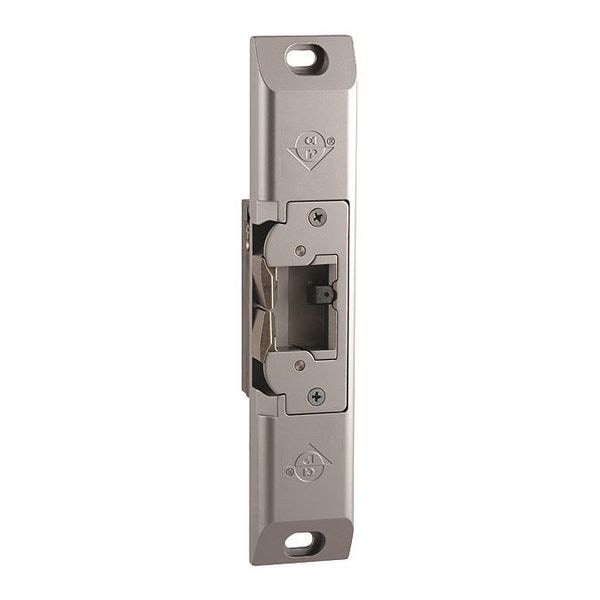

Electric Door Strike, Stainless Steel, Aluminum, For Use With: Rim Exit Device
| Item | Electric Door Strike |
|---|---|
| Performance | Heavy-Duty |
| Failure Mode | Fail Safe |
| Input Voltage | 12V DC, 16V DC, 24V DC |
| Door Frame Type | Wood, Metal |
| Faceplate Depth | 11/16 in |
| Faceplate Height | 9 in |
| Faceplate Width | 1-3/4 in |
| Pull Force | 1,500 lb |
| Grade | 1 |
| Finish | Aluminum |
| For Use With | Rim Exit Device |
| Includes | Mounting Plate Shims, Mounting Screws |
| Bolt Throw | 3/4 in |
| Features | Ultraline |
| Standards | ANSI/BHMA A156.18, ANSI/BHMA A156.31, UL 294, ULC S319 |
| Fire Rated | No |
| Material | Stainless Steel |
| Strike Type | Cylindrical, Mortise |
| For Use with Door Material | Wood, Aluminum, Hollow Metal |
| ANSI/BHMA Finish | Clear Anodized, Satin Aluminum |
| Includes Hardware | Hardware Included |
| Strike Cycles | 250,000 |
| Performance Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
