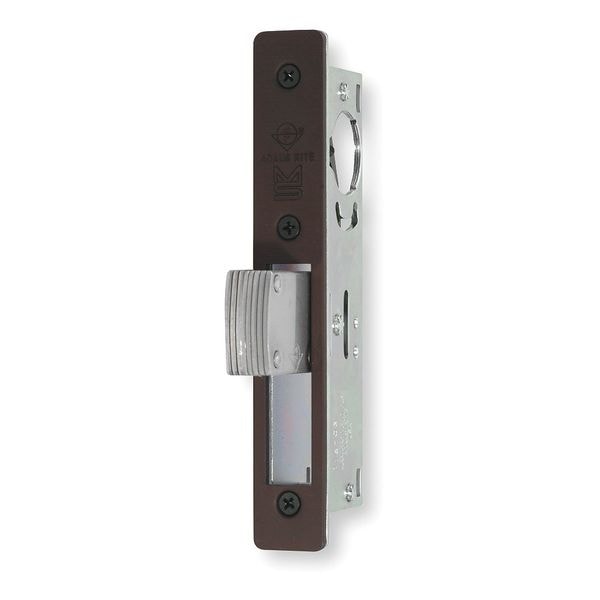

Key Control Deadbolt, Med.Duty, Brass
| Mortise / Cylindrical | Mortise |
|---|---|
| Location Type | Commercial |
| Lockset Grade | 2 |
| Series | QDB2 |
| For Door Thickness | 1-3/8 to 1-3/4 in |
| Lockset Finish | Brass |
| Keyway Type | Kwikset, KC KW1 |
| Key Type | Not Keyed |
| Standards | ANSI A156.5 |
| ADA Compliant | No |
| Strike Dim. | 1 in x 2-1/4 in |
| Throw Length | 1-3/8 in |
| Lockset Fire Rating | Not Rated |
| Material | Bronze |
| Faceplate Dimensions | 1 in x 2-1/4 in |
| Security Type | Medium-Duty |
| For Use With | Standard 1 5/32 in Dia Mortise Cylinder with an MS Cam |
| Ligature Resistant | No |
| Item | Deadbolt Lock |
| Backset | 1-1/8 in |
| Cylinder | Single |
| Mortise/Cylindrical | Cylindrical |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative, Declare |
| Type | Hook Bolt |
| Finish | Brass |
| Application | Commercial, Industrial, Institutional |
| Grade | 2 |
| Hand | Nonhanded |
| Includes | Faceplate, Strike Plate |
| Keying | Master |
| Front Size Dimension | 1 in x 2-1/4 in |
| Door Thickness - Maximum | 1-3/8 in |
| Faceplate Height | 6-7/8 in |
| Faceplate Width | 1 in |
| ANSI/BHMA Finish | Dark Oxidized Satin Bronze, Oil Rubbed |
| Ligature-Resistant | Not Ligature-Resistant |
| Locking/Unlocking Access - Inside | Coreless |
| ANSI Grade | 2 |
| Strike Plate Height | 2-1/4 in |
| Fire Rating | Not Applicable |
| Locking/Unlocking Access - Outside | Coreless |
| Cylinder Core Type | Not Applicable |
| Strike Plate Width | 1 in |
| Includes Core | Core Not Included |
| Door Thickness - Minimum | 1-3/4 in |
| Includes Hardware | Hardware Included |
| Visual Indicator Message | Not Applicable |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
