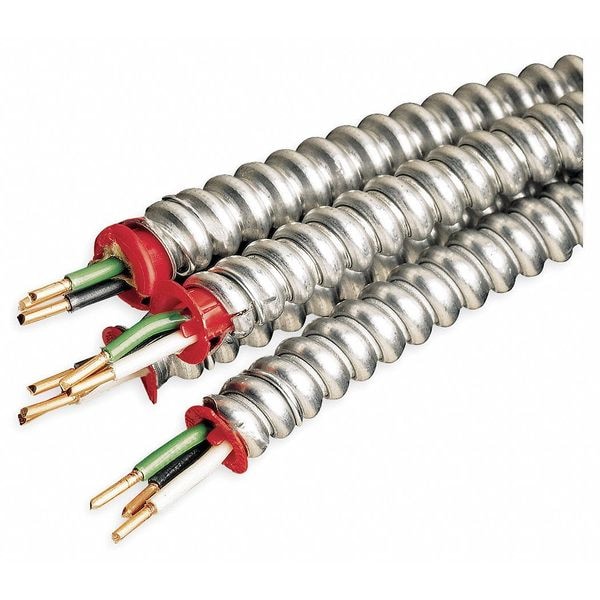

Metal Clad Building Cable, MC, 12 AWG, 3C with Ground C, Silver, Aluminum, Stranded, 600V AC
| Item | Metal Clad Building Cable |
|---|---|
| Trade Designation | MC |
| Wire Size | 12 AWG |
| Conductor Material | Copper |
| Number of Conductors | 3C with Ground |
| Wire Color | Black/Green/Red/White |
| Jacket Color | Silver |
| Jacket Material | Aluminum |
| Conductor Design | Stranded |
| Insulation Material | PVC, Nylon |
| Voltage | 600V AC |
| Length | 250 ft |
| Temp. Rating | 90° C |
| Standards | UL 83, 1479, 1569, 1581, 2556, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544, Meets OSHA and HUD Requirements |
| Nominal Outside Dia. | 0.53 in |
| Max. Amps | 20 |
| Conductor Size | 12 AWG |
| Application | General Purpose |
| Insulated / Uninsulated | Insulated |
| Packaging | Coil |
| Overall Length | 250 ft |
| Conductor Insulation Color | White, Black, Red |
| Grounding Conductor Material | Copper |
| Nominal Outside Diameter | 0.46 in |
| Conductor Insulation Material | Nylon, PVC |
| Grounding Conductor Insulation Color | Green |
| Grounding Conductor Size | 12 AWG |
| Temperature Rating - Maximum Dry | 194 deg F |
| Number of Ground Conductors | 1 |
| Package Quantity | 1 |
