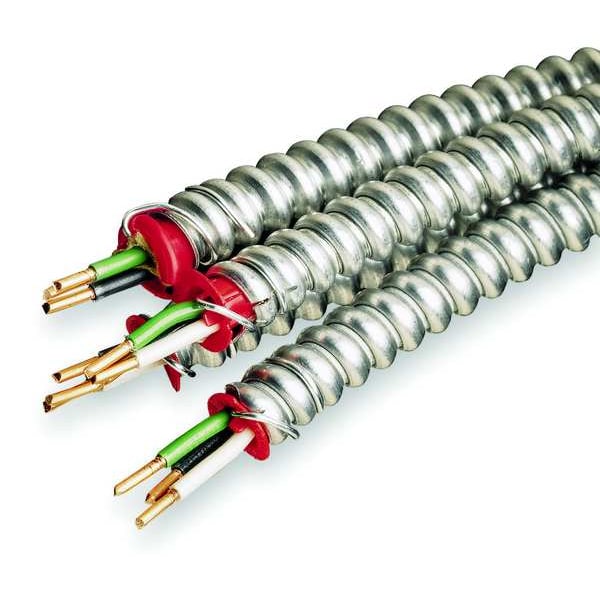

Metal Clad Building Cable, MC, 14 AWG, 2C with Ground C, Silver, Aluminum, Solid, 600V AC, 250 ft
| Item | Metal Clad Building Cable |
|---|---|
| Trade Designation | MC |
| Wire Size | 14 AWG |
| Conductor Material | Copper |
| Number of Conductors | 2C with Ground |
| Wire Color | Black/Green/White |
| Jacket Color | Silver |
| Jacket Material | Aluminum |
| Conductor Design | Solid |
| Insulation Material | PVC, Nylon |
| Voltage | 600V AC |
| Length | 250 ft |
| Temp. Rating | 90° C |
| Standards | UL 83, 1479, 1569, 1581, 2556, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544, Meets OSHA and HUD Requirements, ISO 9001 Certified |
| Nominal Outside Dia. | 0.47 in |
| Max. Amps | 15 |
| Application | General Purpose |
| Insulated / Uninsulated | Insulated |
| Features | Cable System. Technically equivalent and economically superior to traditional raceway and wire installations.; ColorSpec® ID/Color-Trak ID System. Plain aluminum armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type.*; Redundant Grounding. For applications requiring isolated, redundant, or dedicated grounding conductors. Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request.; RoHS Compliant. Aluminum armored cables are RoHS compliant; Buy American. Aluminum armored cables are Buy American compliant; Made in USA of US and/or imported materials; *No ColorSpec on Low Voltage BK WE GN 12-2, all 10 AWG and larger configurations. |
| Conductor Size | 14 AWG |
| Packaging | Coil |
| Shielding Material | Polypropylene Tape |
| Overall Length | 250 ft |
| Outside Diameter (in) | 0.474 |
| Minimum Bend Radius | 7.1 |
| Trade Size (in) | 14 to 2 |
| Conductor Insulation Color | White, Black |
| Grounding Conductor Insulation Color | Green |
| Grounding Conductor Material | Copper |
| Nominal Outside Diameter | 0.42 in |
| Conductor Insulation Material | Nylon, PVC |
| Temperature Rating - Maximum Dry | 194 deg F |
| Number of Ground Conductors | 1 |
| Grounding Conductor Size | 14 AWG |
| Number of Strands | 1 |
| Package Quantity | 1 |
