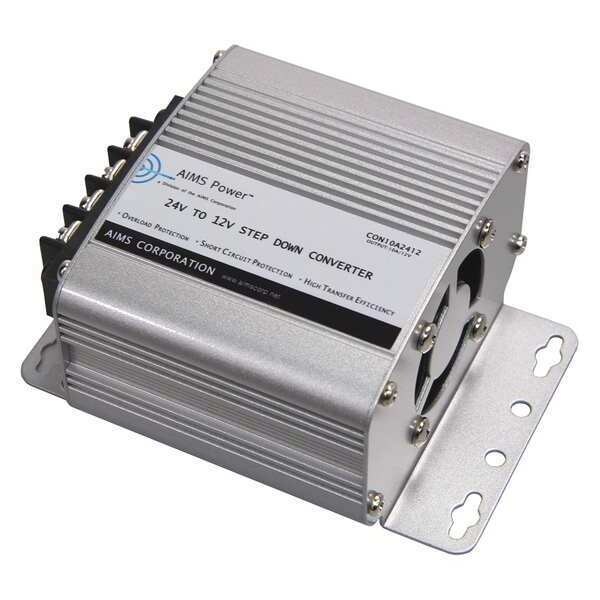

DC to DC Converter, 24V DC to 12V DC, 0 Hz, Aluminum
| Item | DC to DC Converter |
|---|---|
| Converts | 24V DC to 12V DC |
| Enclosure Material | Aluminum |
| Frequency | 0 Hz |
| Phase | Not Applicable |
| Height | 2.2 in |
| Width | 3.39 in |
| Depth | 4.41 in |
| Features | 10 Amp 24 volt to 12 volt dc to dc converter;Green LED on front panel to confirm power on;Terminal block for DC input/output;Over Temperature protection;Over Load protection;DC Input Low Battery Shutdown;DC Input High Battery Shutdown;DC Output Short Protection;DC Output Over Current Protection;DC Output Over Voltage Protection;Transformer based;Aluminum case for optimal cooling;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor;CE EN61000-6-3:2007+A1:2011;CE EN61000-6-1:2007 |
| Inverter Input Voltage | 20V to 37V DC |
| Inveter Output Voltage | 12.5V-13.5V DC |
| Specification | DC Input Voltage: 20-37 Vdc;DC Output Voltage: 12.5-13.5 Vdc;Output Current: 10 amps;Output Current Max: 12 amps;Non-Isolated;Conversion Effiency: >91%;DC Input Low Battery Shutdown: 18 +/- 1 V;DC Input High Battery Shutdown: >38Vdc;DC Input Over Current Protection: 7.5A Fuse;DC Input Polarity Protection: Fuse Protected;Over Temperature Protection: 150 +/- 5 degrees F;DC Output Short Protection: Yes;DC Output Over Current Protection: 12 amps;DC Output Over Voltage Protection: TVS Diode |
| Package Quantity | 1 |
