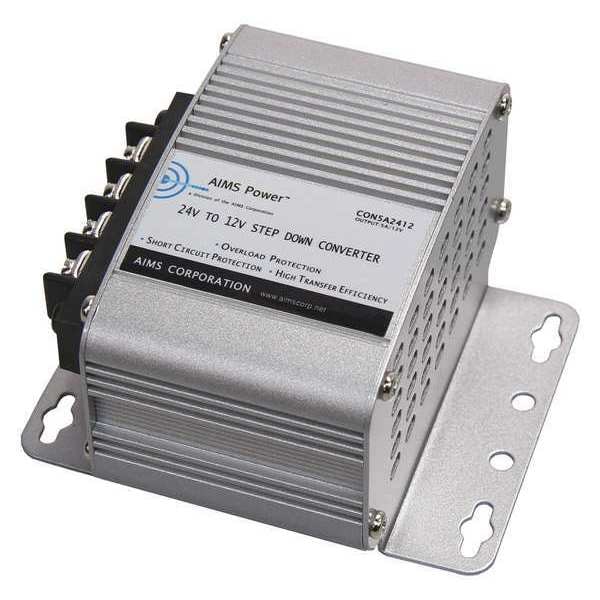

DC to DC Converter, 24V DC to 12V DC, 0 Hz, Aluminum
| Item | DC to DC Converter |
|---|---|
| Converts | 24V DC to 12V DC |
| Enclosure Material | Aluminum |
| Frequency | 0 Hz |
| Phase | Not Applicable |
| Height | 2.2 in |
| Width | 3.39 in |
| Depth | 3.62 in |
| Features | 5 Amp 24 volt to 12 volt dc to dc converter;Green LED on front panel to confirm power on;Terminal block for DC input/output;Over Temperature protection;Over Load protection;DC Input Low Battery Shutdown;DC Input High Battery Shutdown;DC Output Short Protection;DC Output Over Current Protection;DC Output Over Voltage Protection;Transformer based;Aluminum case for optimal cooling;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor;CE EN61000-6-3:2007+A1:2011;CE EN61000-6-1:2007 |
| Inverter Input Voltage | 20V to 37 V DC |
| Inveter Output Voltage | 12.5V-13.5V DC |
| Specification | Dimensions: DC Input Voltage: 20-37 Vdc;DC Output Voltage: 12.5-13.5 Vdc;Output Current: 5 amps;Output Current Max: 6 amps;Non-Isolated;Conversion Effiency: >92%;DC Input Low Battery Shutdown: 18 +/- 1 V;DC Input High Battery Shutdown: >38Vdc;DC Input Over Current Protection: 3A Fuse;DC Input Polarity Protection: Fuse Protected;Over Temperature Protection: 150 +/- 5 degrees F;DC Output Short Protection: Yes;DC Output Over Current Protection: 6 amps;DC Output Over Voltage Protection: TVS Diode;Unit Weight: 0.57 lbs.;Unit Size L x W x H: 3.62 x 3.39 x 2.2 inches;Shipping Weight: 1 lbs. |
| Package Quantity | 1 |
