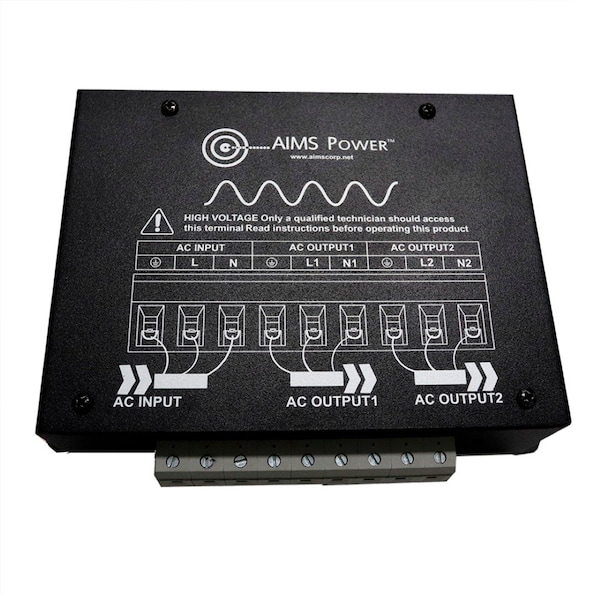

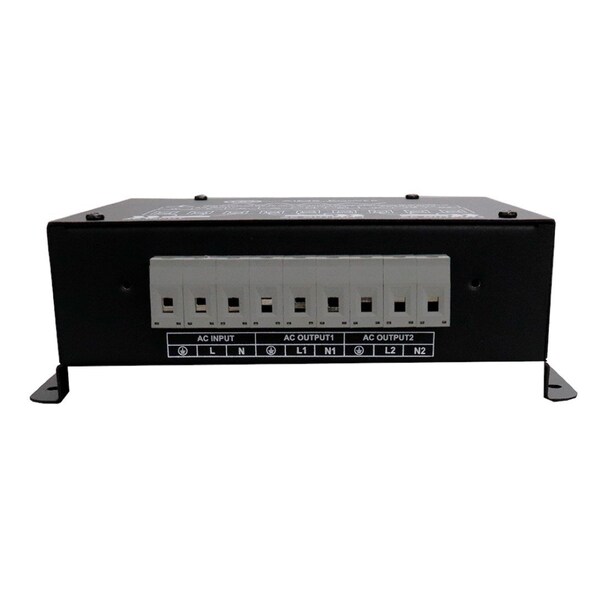

Energy Management Switch To Prevent Tripping Of Breakers
| Width | 6-1/2 in |
|---|---|

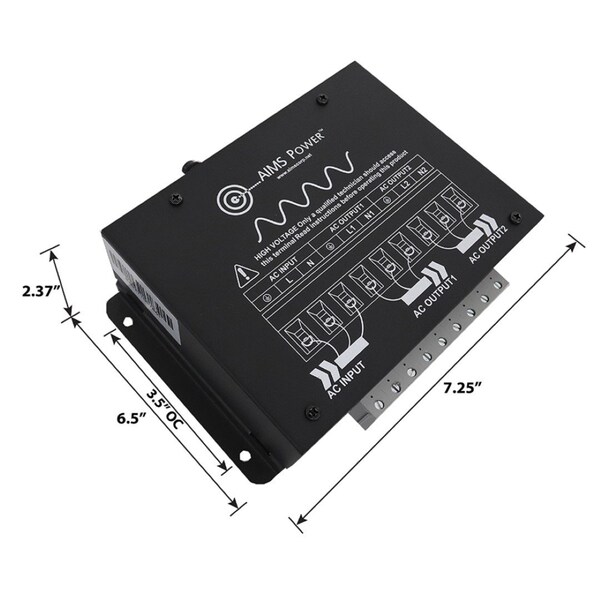

| Features | AC input voltage and frequency: 120 VAC 50/60 Hz, AC input current: 18 A (max), AC output voltage and frequency: 120 VAC 50/60 Hz, AC output current: 18 A (max), Dip switch to control delay, Weight: 2 lbs, Dimensions: 7.25L” x 6.5D” x 2.37H”, Mounting holes center to center: 3.5″ |
| Wire Size | 12 AWG Minimum and 8 AWG Maximum |
| Max. Current | 18 A (max) |
| Standards | N/A |
| Max. Output Amps | 18 A (max) |
| Color | Black |
| Includes | Energy Management Switch |
| Max. Output | 120 VAC 50/60 Hz |
| Length | 7-1/4 in |
| Depth | 2.37 in |
| Power Source | 120 VAC 50/60 Hz |
| Application | Applications using inputs from an inverter, shore OR generator that have a single 20A branch circuit |
| Package Quantity | 1 |
