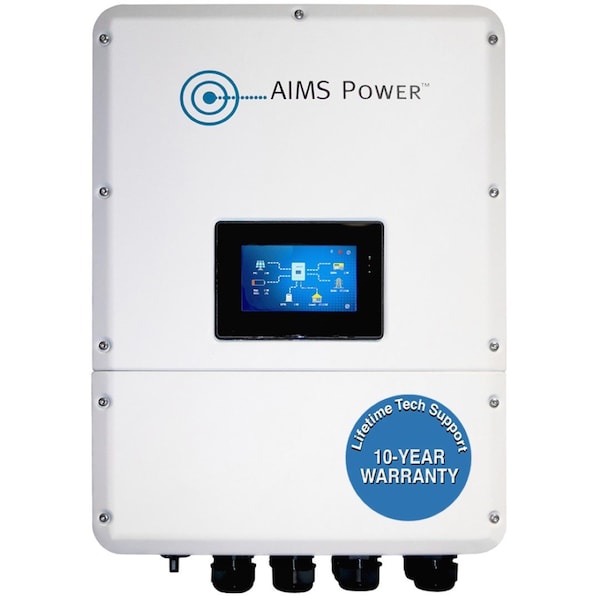

Hybrid Inverter Charger 6.6 Kw Inverter Output 15Kw Solar Input Grid Tie & Battery Back Up

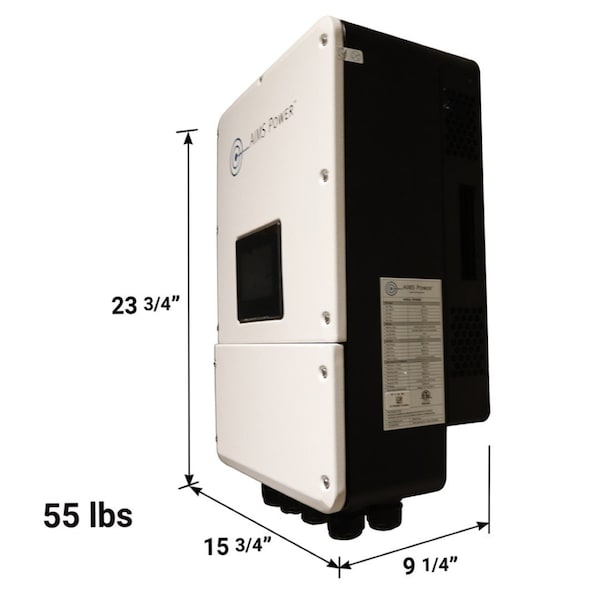

| Length | 24 in |
|---|---|
| Color | White |
| Includes | Hybrid Inverter |
| Depth | 9 in |
| Width | 16 in |
| Power Source | 15 kW |

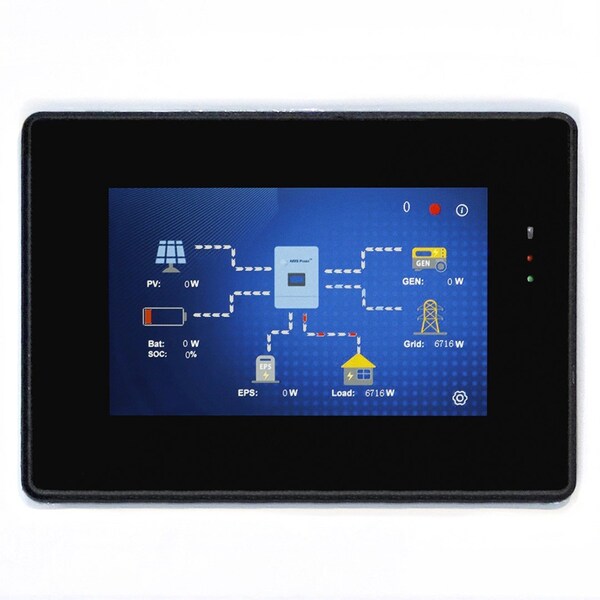

| Features | Listed to UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B, Stackable (Max 6), Direct 3 string PV input, IP65 NEMA4X rated for outdoor installation, 10 year warranty, Customizable DC input voltage for various battery types including lithium and lead, Free USA based tech support, Wide programmable voltage input range, Generator input for backup 240VAC, Wide PV input voltage range, Load sharing, Isolated emergency backup output for defined loads, Configurable charge and load times based on local utility recommendations, Loaded with safety features, Large 5-inch color LCD, RS485, CAN, Wi-Fi, 4G, Extremely efficient, FCC Part 15 Class B |
| Standards | UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B |
| For Use With | Pv Solar Arrays |
| CED Efficiency | 0.97 |
| Max Continuous Power (AC Grid) | 9.6 kVA |
| Application | Hybird inverter, solar power system control |
| Max Charge/Discharge Power | 11.5 | 10.3 kW |
| Max Continuous Power (AC Back-up & Generator) | 9.6 kVA |
| Package Quantity | 1 |
