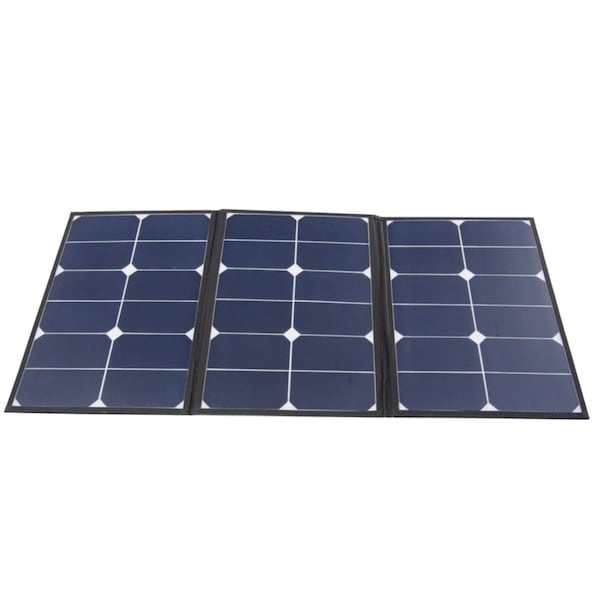

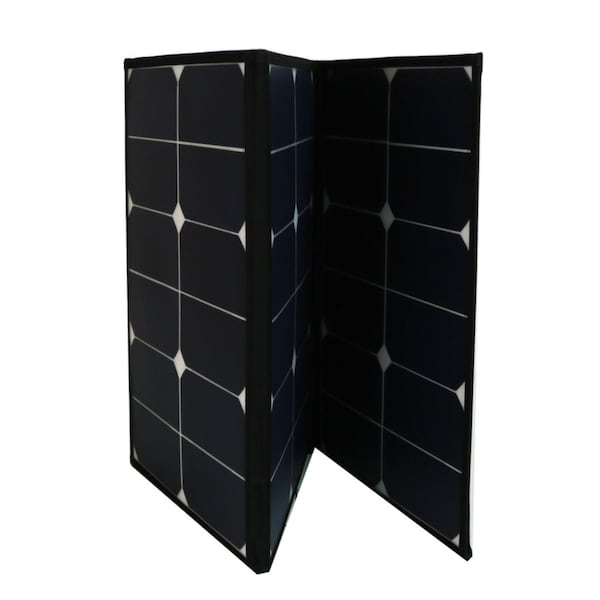

Monocrystalline Solar Panel, 60 W, 19.8V DC, 3 A, 36 Cells, Spade
| Item | Solar Panel |
|---|---|
| Maximum Power Point | 60 W |
| Cell Type | Monocrystalline |
| Voltage @ Maximum Power Point | 19.8 V DC |
| Current @ Maximum Power Point | 3 A |
| Overall Width | 33 in |
| Overall Height | 15.8 in |
| Overall Depth | 0.2 in |
| Number of Cells | 36 |
| Connector | Spade |
| Color | Black |
| Includes | Solar Panel w/Case, Prewired Cable |
| Standards | N/A |

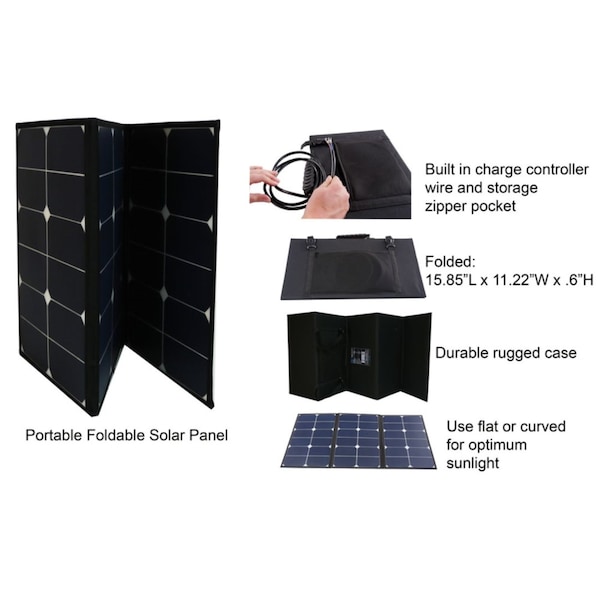

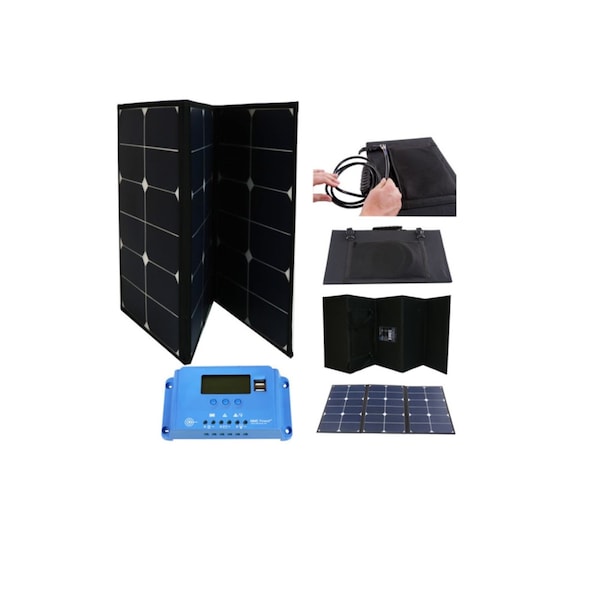

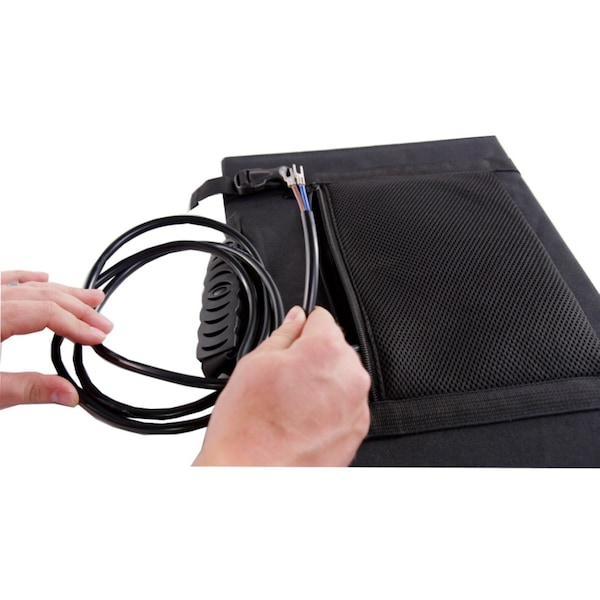

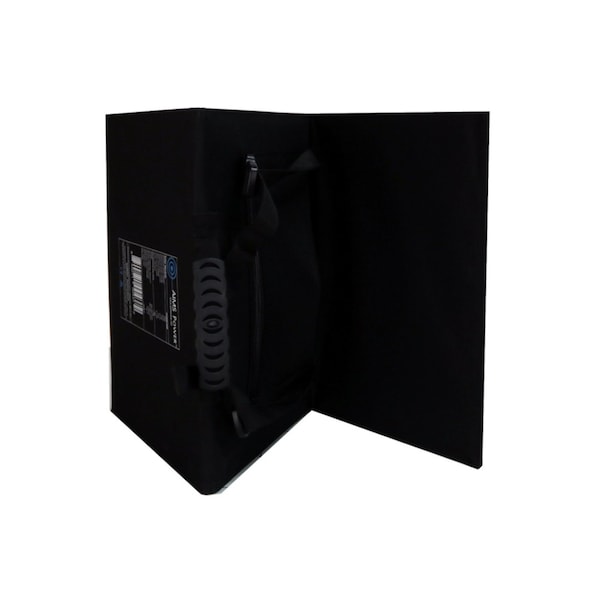

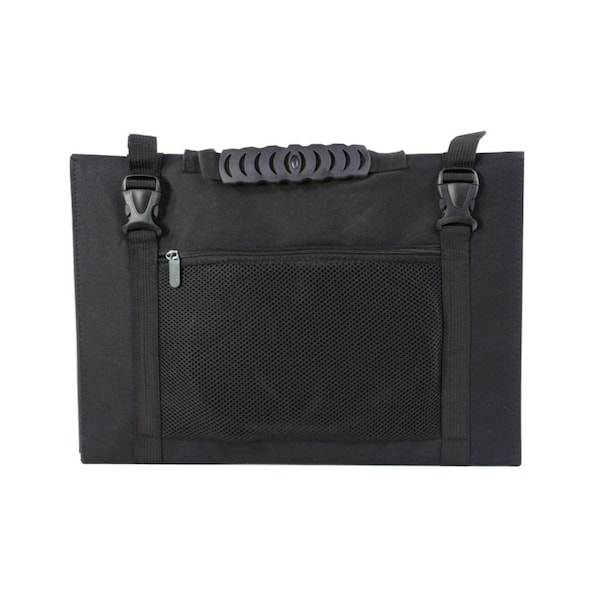

| Features | Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest, Built in solar charge controller cable 6ft, Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, bikes and back packs, Portable and easily adjusts to the optimum sunlight angle, Accordion style fold up case, Weather resistant. Appropriate for outdoor use., Durable and rugged case with convenient side zipper pocket to store wires and charge controller, Lightweight and super thin allowing for easy storage and set up, Bypass diode minimizes the power drop when shaded, Reverse current protection, Modules are independently tested to ensure conformance with certification and regulatory standards, Manufacturing facility certified to ISO 9001 quality management system standards, Panels capable of +/- 3% power efficiency than rated, 5 year warranty, 10 year 80% output, , , , , , , |
| Module Efficiency | 0.192 |
| Specification | Specifications:High performance: light transmittance up to 93%Cell Efficiency: 22.3% (one of the highest)Module Efficiency: 19.2% (one of the highest)Maximum Power: 60WTolerance Wattage (e.g. +/- 5%): +/- 3WMaximum System Voltage: 600V DC (UL)Max Power Voltage (Vmp): 19.8 VMax Power Current (Imp): 3 AOpen-Circuit Voltage (Voc): 23.7 VShort-Circuit Current (Isc): 3.6 AMaximum Fuse Rating: 10 AFire Safety Class: Class ATemperature Range: -40°F to 185°FNumber of cells: 2 x 6 x 3 Charge controller PV Wire: 10 AWG with spade connector easily fits into various charge controllers;Temperature Coefficients °C:ISC(%): +2.6Voc(%): -50.6Prm(%): -.38Im(%): +2.2Vm(%): -60.8Dimensions: Expanded 33 X 15.8 X 0.20 inches Folded 11.22 x 15.85 x .6 inchesWeight: 2.85 lbsCertifications: CE, ETL, TUV and RoHSCase:Water resistantDurable rubber handleEasy side slide bucklesConvenient size zipper pocket for wires and charge controller storage;Warranty: 5 year manufacturer, 10 years 80% output |
| Tolerance Wattage | +/- 3W |
| Application | Remote application needing power |
| Cell Efficiency | 0.223 |
| Light Transmittance | up to 93% |
| Package Quantity | 1 |
