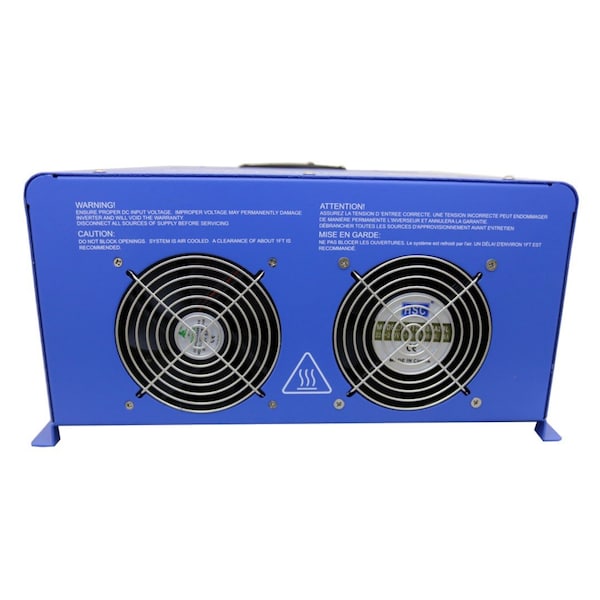

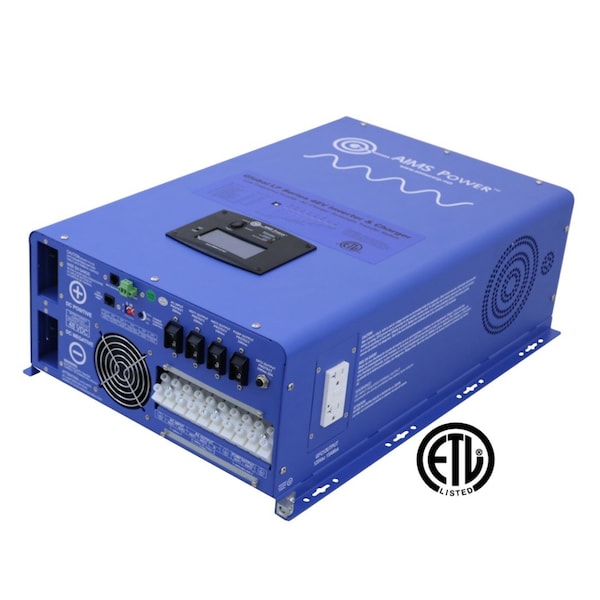

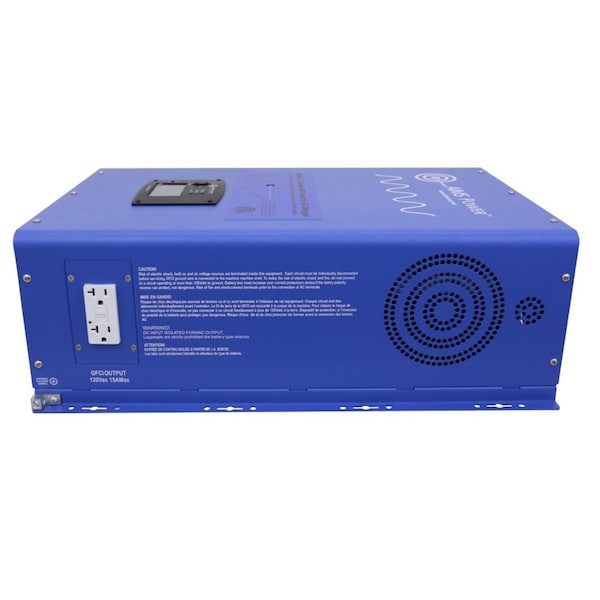

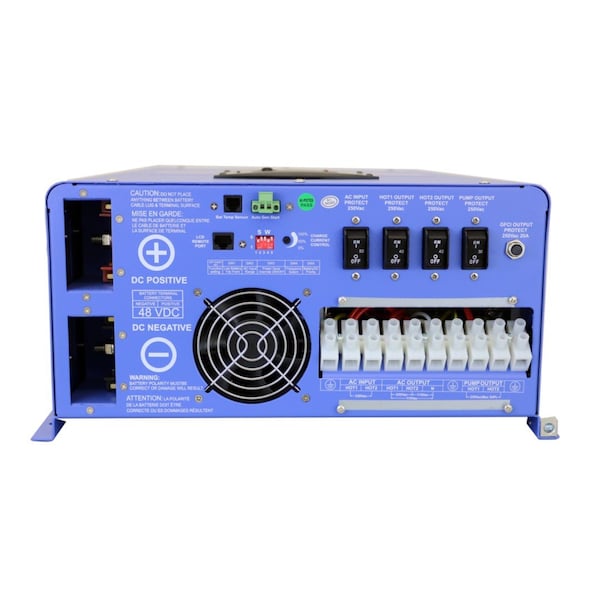

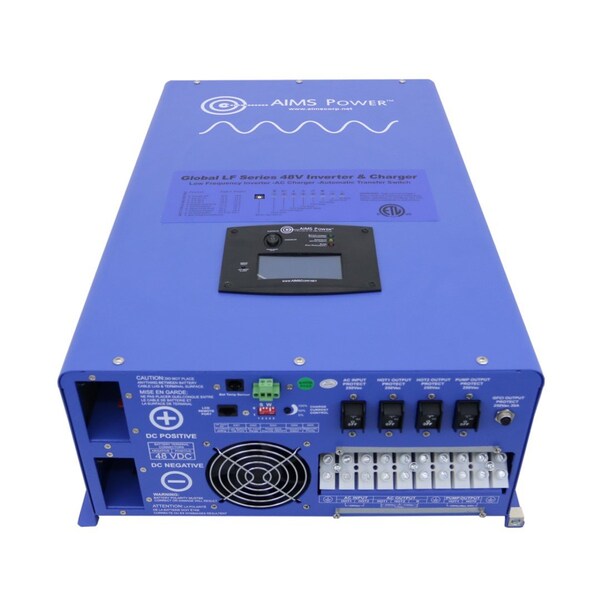

Power Inverter and Battery Charger, Pure Sine, 24,000 W Peak, 8,000 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 24,000 W |
| Continuous Output Power | 8,000 W |
| Inverter Output Form | Pure Sine |
| Inverter Input Voltage | 48V DC |
| Inverter Output Voltage | 110/120/220/230/240V AC |
| Outlet Type | Hardwire |
| DC Connection | Battery Cables |
| Number of Outlets | 1 |
| Includes | Inverter Charger |
| Features | 8000 Watt low frequency inverter 110/120/220/230/240 Vac Split Phase, 24000 Watt surge for 20 seconds -3x surge capability, ETL Listed to UL 1741 Standards, CSA STDC 22.2 NO.107.1, Battery priority selector, AC direct connect terminal block, Marine coated and protected, Multi stage smart charger 80 Amp charges GEL, Lead, AGM, Lithium, Three cooling fans – thermal and load based, Remote panel available, 60hz or 50 hz selectable dip switch, 10msec typical transfer time, Mounting plate included, Selectable 25W power save mode (hibernation), 8 battery charger settings, 4 stage battery charger, 2 year warranty |
| Nominal Output Power | 8,000 W |
| Width | 16.3 in |
| Length | 23.3 in |
| Standards | UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B |
| Depth | 7.9 in |
| Application | Emergency backup power for residences and businesses |
| Specification | Continuous Output Power: 8000 Watts;Surge Rating: 24000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);100-110-120Vac / 220-230-240Vac;Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 7% under full linear load;Ambient operating temperature: 14°F to 122°F (-10°C to 50°C);Nominal input voltage: 48.0Vdc;Low battery alarm: 42.0Vdc-44.0Vdc;Low battery trip: 40.0Vdc-42.0Vdc;High voltage alarm: 64.0Vdc;Low battery voltage restart: 62.0Vdc;Idle consumption: 100 Watts;Power saver mode idle consumption: <25 Watts;Automatic transfer switch – 50A @ 220/230/240V;Bypass – 50A @ 220/230/240V;Output voltage: depends on battery type;Charger rate: 80A;Four stage smart charger with current adjust dial 20-100%;Unit weight: 132 lbs.;Unit size L x W x H: 23.3 x 16.3 x 7.9 inches;Shipping weight: 176 lbs.;Shipping size L x W x H 30 x 21.25 x 15.25 inches |
| Nominal Efficiency | >88% (Peak) |
| Color | Blue |
| Package Quantity | 1 |
