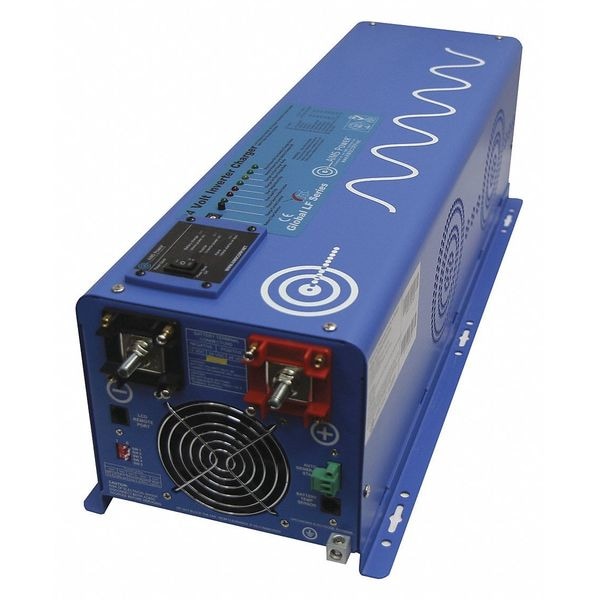

Power Inverter and Battery Charger, Pure Sine Wave, 12,000 W Peak, 4,000 W Continuous, 0 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 12,000 W |
| Continuous Output Power | 4,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 12V DC/240V AC |
| Inverter Output Voltage | 120/240V AC |
| Outlet Type | Hardwired |
| DC Connection | Terminal Posts |
| Number of Outlets | 0 |
| Charger Output Voltage | 14V to 15.5V |
| Charger Output Amps | 115 |
| Inverter Height | 7 in |
| Inverter Depth | 23-1/2 in |
| Charger Height | 7 in |
| Charger Width | 8-1/2 in |
| Charger Input Amps | 8.3 |
| Nominal Output Power | 4,000 W |
| Inverter Width | 8-1/2 in |
| Automatic/Manual | Automatic |
| Charger Input Voltage | 240 V AC |
| Application | Emergency Back Up/ Off-Grid |
| Charger Depth | 23-1/2 in |
| Case Material | Sheet Metal |
| Standards | ISO-9001 |
| Depth | 23-1/2 in |
| Features | Auto Frequency |
| Height | 7 in |
| Width | 8-1/2 |
| Weight | 64 lb |
| Inveter Output Voltage | 120V / 240V AC |
| Output Frequency | 50 +/- 0.3Hz or 60 +/- 0.3Hz selectable |
| Connection Location | connects to battery bank and requires 500A fuse |
| Charger Output Current | 115 A |
| Charger Input Current | 8.3 A |
| Output Voltage | 240 V AC |
| Number of USB-C Ports | 0 |
| Efficiency | 88% |
| Input Voltage | 10 to 16 VDC |
| Number of USB Ports | 0 |
| Charger DxWxH | 23-1/2 in x 8-1/2 in x 7 in |
| Specification | Continuous Output Power: 4000 Watts;Surge Rating: 12000 Watts (20 Seconds);Output 120/240 Vac – Split Phase 50 or 60hz;Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 12.0Vdc;Minimum Start Voltage: 10.0Vdc;Low Battery Alarm: 10.5Vdc-11.0Vdc;Low battery Trip: 10.0Vdc-10.5Vdc;High Voltage Alarm/shutdown: 16.0Vdc;Low Battery Voltage Restart: 13.3Vdc;Idle Consumption: 50 Watts;Power Saver Mode Idle Consumption: 21 Watts;Output voltage: Depends on battery Type;Charger Rate: 115A;Over Charge Protection Shutdown 15.7V;Selectable Charge setting based on battery type;Adjustable charge current off-20%-100%;Four Stage Smart Charger;40 amp automatic transfer switch;10 ms (max);Unit Weight: 64 lbs.;Unit Size L x W x H: 27.88 x 8.5 x 7.0 inches;Shipping Weight: 75 lbs.;Shipping L x W x H 30.5 x 14.5 x 13.75inches |
| Cooling Method | Forced Air |
| Package Quantity | 1 |
