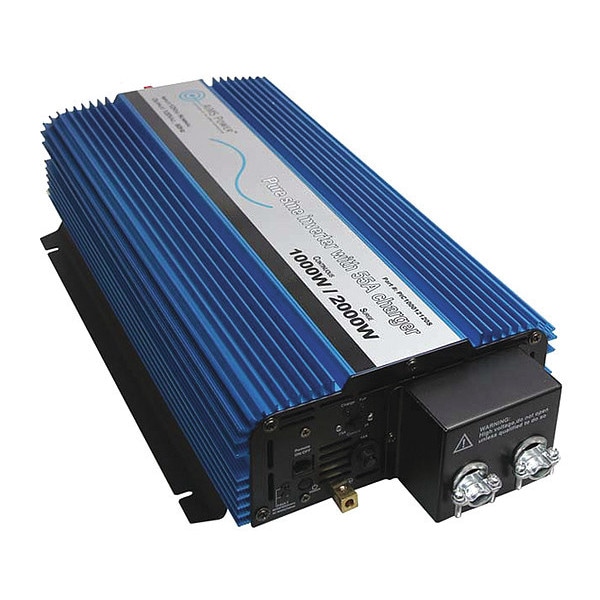

Power Inverter and Battery Charger, Pure Sine Wave, 2,000 W Peak, 1,000 W Continuous
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 2,000 W |
| Continuous Output Power | 1,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 12V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Hardwired |
| DC Connection | Terminal Bock |
| Features | Features: 1000 Watt continuous power;2000 Watt surge;Selectable 25A or 55A battery charger (Gel, AGM, lead, not for lithium);Built in Transfer Switch;12 Volt DC input;Pure sine wave;Conformal Coated Circuit Board;AC Direct Connect Terminal Block;Efficiency: 86% – 90%;Over load and Short circuit protection;On/off switch;Dual cooling fans thermally controlled;Instruction manual;1 year tech support;1 Year Warranty Parts and Labor replacement;Optional Remote Switch Available (Part# REMOTEHF) |
| Nominal Output Power | 1,000 W |
| Specification | Specifications: Continuous output power: 1000 Watts;Surge power capability (peak power): 2000 Watts;Battery charge current 25A or 55A (optional);AC inverter transfer time: < 20ms;Transfer/bypass: 10 amps;Breaker: 25 amps;DC input / operating voltage: 10-16 Volts;AC input voltage range: 120 Volts AC +/- 10%;Output voltage: 120 Volts AC;Output frequency: 60 Hz;Output wave form: pure sine wave (THD < 3%);Over voltage shutdown: 16 +/- 0.5 Volts;Battery low voltage alarm: 9.8 +/- 0.3 Volts;Battery low voltage shutdown: 9.5 +/- 0.5 Volts;Battery overcharge protection voltage: 14.4 Volts;Battery float charge voltage: 13.5 Volts;Efficiency range: 86% – 90%;No load current: 1.2A;No load minimum operating temperature: 32 degrees Fahrenheit;Unit weight 12.1 LBS;Shipping weight 15lbs;Unit dimensions 17 ¼"x9 ¼"x 4" |
| Package Quantity | 1 |
