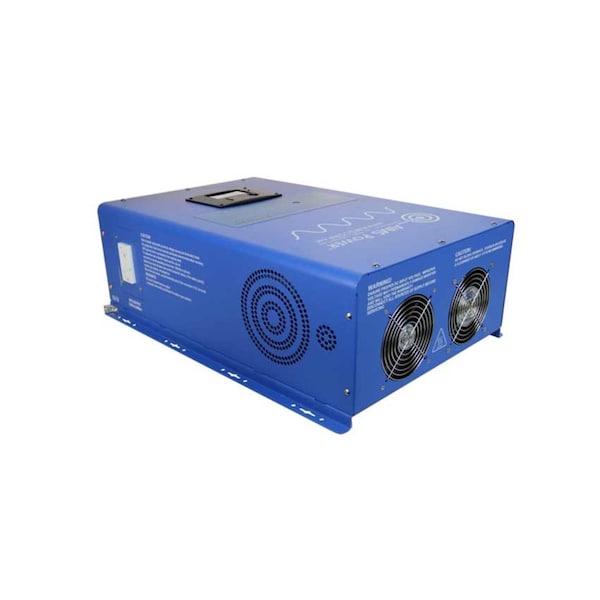

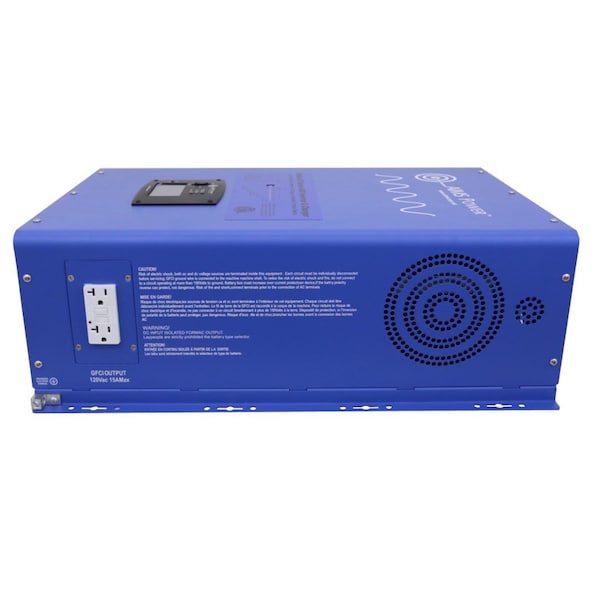

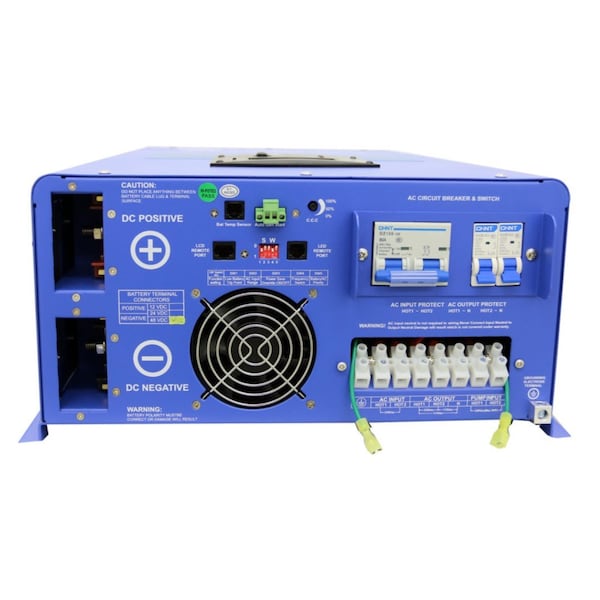

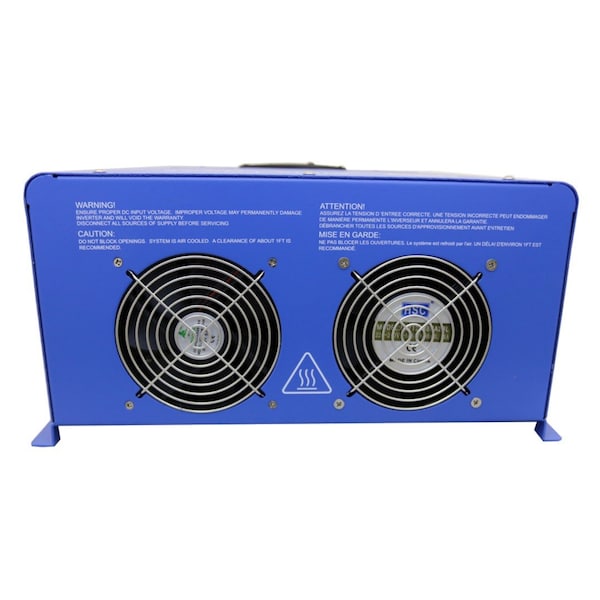

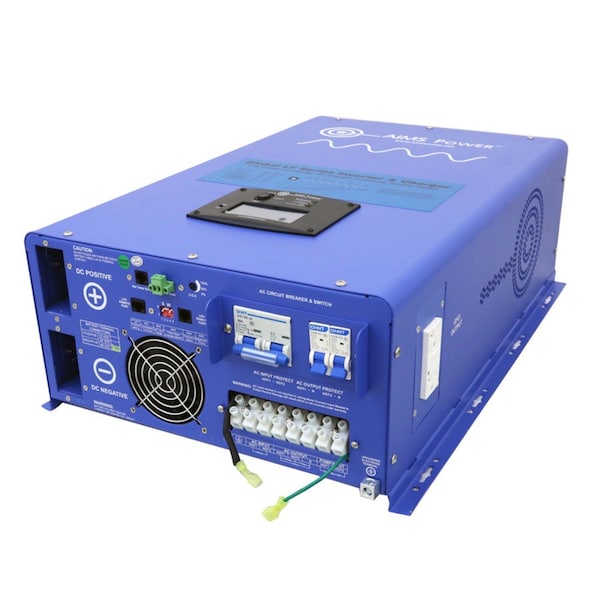

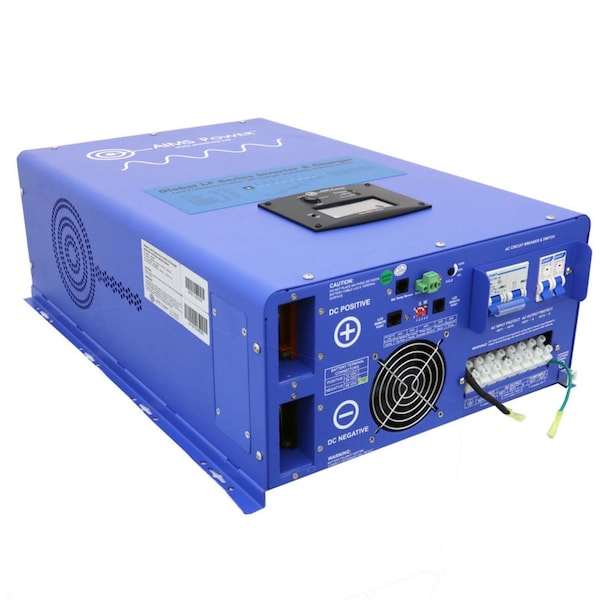

Power Inverter and Battery Charger, Pure Sine Wave, 30,000 W Peak, 10,000 W Continuous
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 30,000 W |
| Continuous Output Power | 10,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 48V DC; 240V AC |
| Inverter Output Voltage | 120/240V AC |
| DC Connection | Terminal Bock |
| Application | Emergency backup power in homes, business and recreation locations |
| Length | 23.3 in |
| Depth | 23.3 in |
| Includes | Inverter Charger |
| Width | 16.3 in |
| Features | 10000 watt low frequency inverter 110/220Vac Split Phase, 30000 watt surge for 20 seconds -3x surge capability, Battery Priority Selector, Terminal Block, Marine Coated and Protected, Multi Stage Smart charger 100 Amp charges GEL, Lead, AGM, Lithium, Remote panel available, 10msec typical transfer time, Selectable 25W power save mode (hibernation), 8 battery charger settings, Automatic transfer switch, 1 year warranty |
| Standards | N/A |
| Nominal Output Power | 1,000 W |
| Height | 7.9 in |
| Inveter Output Voltage | Depends On Battery Type |
| Specification | Continuous Output Power: 10000 Watts;Surge Rating: 30000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);100-110-120Vac / 220-230-240Vac;Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient operating temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 48.0Vdc;Low Battery Alarm: 42.0Vdc-44.0Vdc;Low battery Trip: 40.0Vdc-42.0Vdc;High Voltage Alarm: 64.0Vdc;Low battery Voltage Restart: 62.0Vdc;Idle Consumption: 150 Watts;Power Saver Mode Idle Consumption: 35 Watts;Output voltage: Depends on battery Type;Charger Rate: 100A;Unit Weight: 145.5 lbs.;Unit Size L x W x H: 23.3 x 16.3 x 7.9 inches;Shipping Weight: 190 lbs.;Shipping L x W x H 30 x 21.25 x 15.25 inches |
| Color | Blue |
| Nominal Efficiency | >88% (Peak) |
| Package Quantity | 1 |
