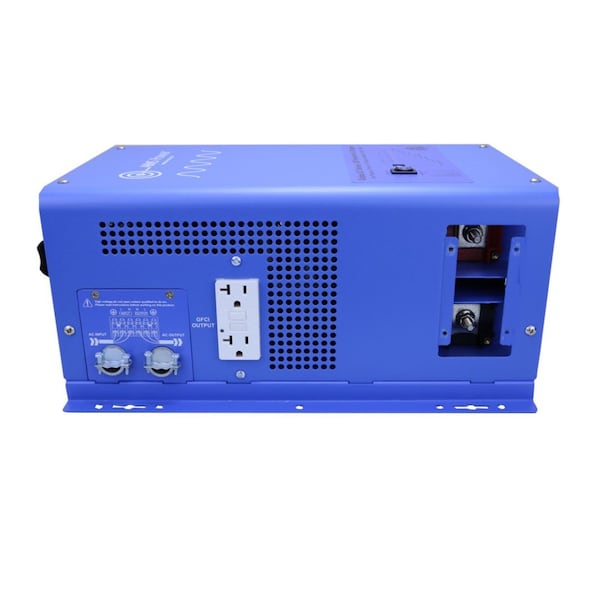

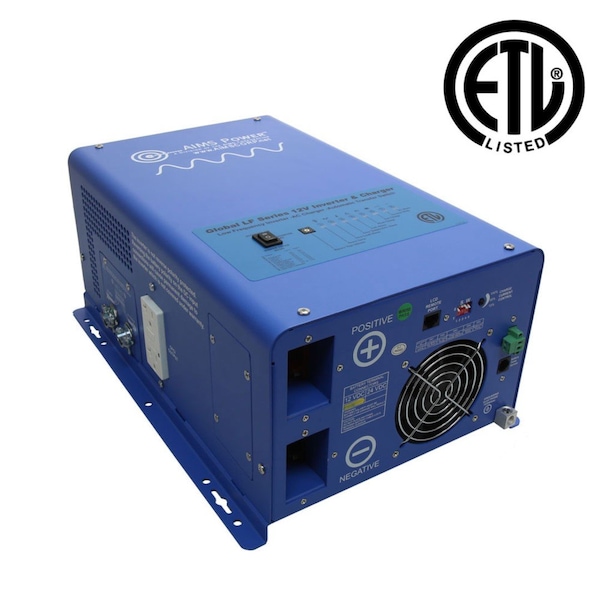

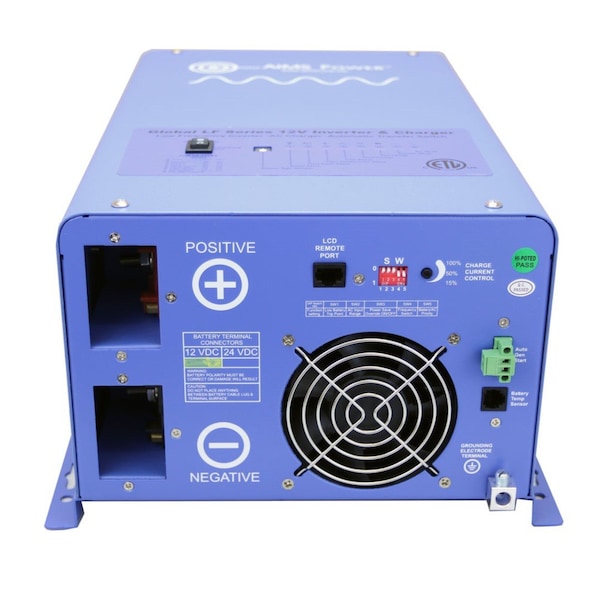

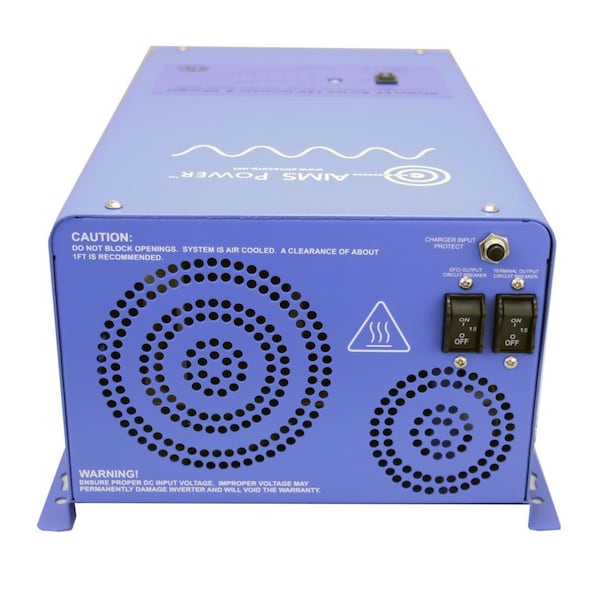

Power Inverter and Battery Charger, Pure Sine Wave, 4,500 W Peak, 1,500 W Continuous, 2 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 4,500 W |
| Continuous Output Power | 1,500 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 12V DC |
| Inverter Output Voltage | 100V/110V/120V AC |
| Outlet Type | GFCI |
| DC Connection | Terminal Bock |
| Number of Outlets | 2 |
| Nominal Output Power | 1,500 W |
| Standards | UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B |
| Features | Listed to UL 458 Standards and CSA 22.2 No 107.1, 1500 watt low frequency inverter, 4500 watt surge for 20 seconds -3x surge capability, Battery priority selector, AC direct connect terminal block, GFCI – 20amps, Marine coated and protected, Multi stage smart charger 50 Amp for gel, AGM, lead and lithium LiFePO4, Remote panel available, Auto gen start, Auto frequency, 10msec typical transfer time, 7 battery type settings for charger, Selectable 25W power save mode (hibernation), Automatic transfer switch |
| Height | 7 in |
| Length | 16-1/4 in |
| Application | Renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110 or 120 volts of alternating current |
| Depth | 15.35 in |
| Width | 11 in |
| Includes | Inverter Charger |
| Inveter Output Voltage | Depends On Battery Type |
| Specification | Inverter Output Specifications: Input Specifications: Charger Specifications: Dimensions: Listed to UL 458 Standards;Continuous Output Power: 1500 Watts;Surge Rating: 4500 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Output Voltage: 100-110-120Vac;Nominal Efficiency: >92% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Bypass Terminal Breaker – 20 amps;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Nominal Input Voltage: 12.0Vdc;Minimum Start Voltage: 10.0Vdc;Low Battery Alarm: 10.5Vdc-11.0Vdc;Low Battery Trip: 10.0Vdc-10.5Vdc;High Voltage Alarm: 16.0Vdc;Low /battery Voltage Restart: 13.0Vdc;Idle Consumption: 13.5 watts;Charger Breaker – 20 amps;Power Saver Mode Idle Consumption: 8 watts;Output Voltage: Depends on battery Type;Charger Rate: 50A;Unit Weight: 38 lbs.;Unit Size L x W x H: 15.35 x 11 x 7 inches;Shipping Weight: 46 lbs.;Shipping L x W x H: 20.5 X 13.8 X 12.2 inches |
| Color | Blue |
| Package Quantity | 1 |
