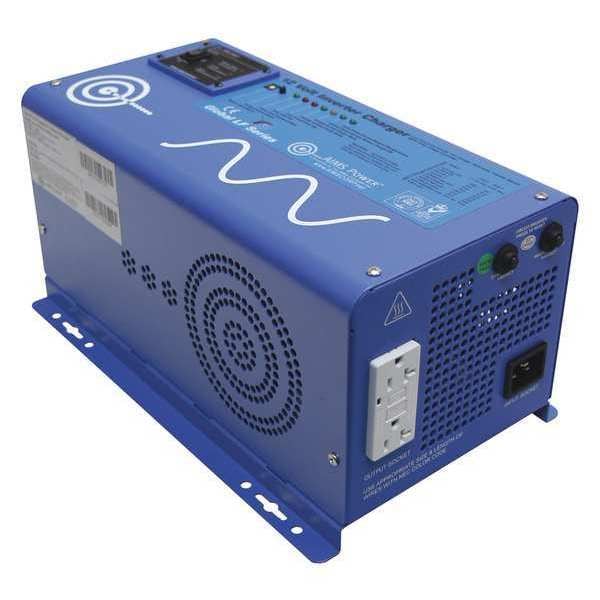

Power Inverter and Battery Charger, Pure Sine Wave, 4,500 W Peak, 1,500 W Continuous, 2 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 4,500 W |
| Continuous Output Power | 1,500 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 12V DC |
| Inverter Output Voltage | 100V/110V/120V AC |
| Outlet Type | GFCI |
| DC Connection | Terminal Bock |
| Number of Outlets | 2 |
| Features | Features: 1500 watt low frequency inverter;4500 watt surge for 20 seconds -3x surge capability;Battery priority selector;Terminal block;GFCI – 15 amps;Marine coated and protected;Multi stage smart charger 50 Amp for gel, AGM, lead and lithium LiFePO4;Remote panel available;Auto frequency;10msec typical transfer time;Selectable 25W power save mode (hibernation);7 battery type settings for charger;Automatic transfer switch |
| Height | 7.1 in |
| Nominal Output Power | 1,500 W |
| Width | 8.74 in |
| Depth | 14.1 in |
| Inveter Output Voltage | Depends On Battery Type |
| Specification | SpecificationsInverter Output Specifications: Input Specifications;Charger Specifications;Dimensions;Continuous Output Power: 1500 Watts;Surge Rating: 4500 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Output Voltage 100-110-120Vac;Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Bypass terminal breaker – 20 amps;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Nominal Input Voltage: 12.0Vdc;Minimum Start Voltage: 10.0Vdc;Low Battery Alarm: 10.5Vdc-11.0Vdc;Low Battery Trip: 10.0Vdc-10.5Vdc;High Voltage Alarm: 16.0Vdc;Low Battery Voltage Restart: 13.3Vdc;Charger Breaker – 20 amps;Idle Consumption: 13.5 Watts;Power Saver Mode Idle Consumption: 8 Watts;Output Voltage: Depends on battery Type;Charger Rate: 50A;Unit Weight: 33 lbs.;Unit Size L x W x H: 14.1 x 8.74 x 7.10 inches;Shipping Weight: 42 lbs.;Shipping L x W x H 20.75 x 12.75 x 12.5 inches |
| Package Quantity | 1 |
