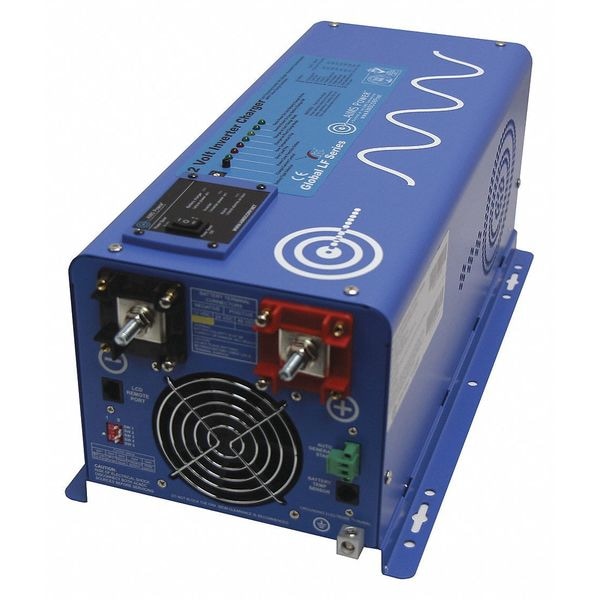

Power Inverter and Battery Charger, Pure Sine Wave, 6,000 W Peak, 2,000 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 6,000 W |
| Continuous Output Power | 2,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 12V DC |
| Inverter Output Voltage | 110/120V AC |
| Outlet Type | GFCI |
| DC Connection | Terminal Bock |
| Number of Outlets | 1 |
| Height | 7.1 in |
| Nominal Output Power | 2,000 W |
| Features | Features: 2000 watt low frequency inverter;6000 watt surge for 20 seconds 300% surge capability;Battery Priority Selector;AC direct connect terminal Block;Marine coated and protected;Multi stage smart charger 70 Amp for gel, AGM, lead and lithium LiFePO4;GFCI – 15 amps;Remote panel available;Auto frequency;10msec typical transfer time;Selectable 25W power save mode (hibernation);7 battery type settings for charger;Automatic transfer switch |
| Width | 8.74 in |
| Depth | 16.48 in |
| Inveter Output Voltage | Depends On Battery Type |
| Specification | Inverter Output Specifications: Input Specifications;Charger Specifications;Transfer Switch Specifications;Dimensions;Continuous Output Power: 2000 Watts;Surge Rating: 6000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Bypass terminal breaker – 30 amps;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 12.0Vdc;Minimum Start Voltage: 10.0Vdc;Low Battery Alarm: 10.5Vdc-11.0Vdc;Low Battery Trip: 10.0Vdc-10.5Vdc;High Voltage Alarm: 16.0Vdc;Low battery Voltage Restart: 13.3Vdc;Idle Consumption: 28 Watts;Charger Breaker – 20 amps;Power Saver Mode Idle Consumption: 12.7 watts;Output Voltage: Depends on battery Type;Charger Rate: 70A;Over Charge Protection Shutdown 15.7V;Selectable Charge setting based on battery type;Adjustable charge current off-20%-100%;Four Stage Smart Charger;30 amp automatic transfer switch;10 ms (max);Unit Weight: 41 lbs.;Unit Size L x W x H: 16.48 x 8.74 x 7.1 inches;Shipping Weight: 53 lbs.;Shipping L x W x H 23.5 x 13.0 x 12.5 inches |
| Package Quantity | 1 |
