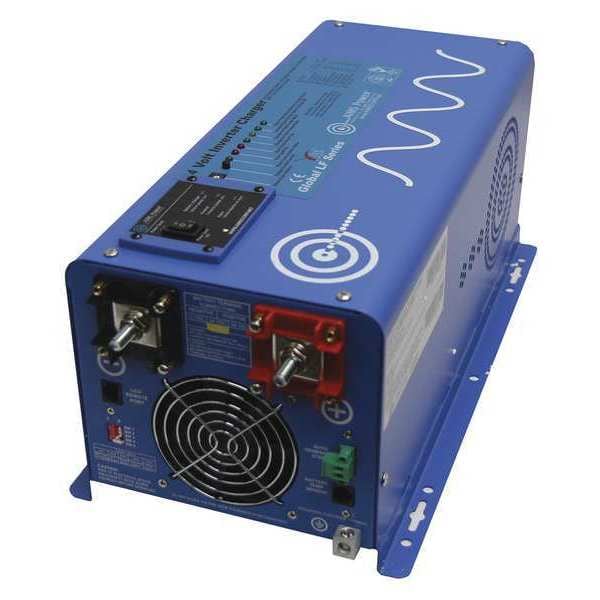

Power Inverter and Battery Charger, Pure Sine Wave, 6,000 W Peak, 2,000 W Continuous, 1 Outlets
| Item |
Power Inverter and Battery Charger |
| Peak Output Power |
6,000 W |
| Continuous Output Power |
2,000 W |
| Inverter Output Form |
Pure Sine Wave |
| Inverter Input Voltage |
24V DC |
| Inverter Output Voltage |
110/120V AC |
| Outlet Type |
Hardwired |
| DC Connection |
Terminal Bock |
| Number of Outlets |
1 |
| Depth |
16.48 in |
| Height |
7.1 in |
| Features |
Features: 2000 watt low frequency inverter;6000 watt surge for 20 seconds 300% surge capability;Battery priority selector;AC direct connect terminal Block;Marine coated and protected;Multi stage smart charger 30 Amp for gel, AGM, lead and lithium LiFePO4;Remote panel available;Auto frequency;10msec typical transfer time;Selectable 25W power save mode (hibernation);7 battery type settings for charger;Automatic transfer switch |
| Nominal Output Power |
2,000 W |
| Width |
8.74 in |
| Inveter Output Voltage |
Depends On Battery Type |
| Specification |
Inverter Output Specifications: Input Specifications;Charger Specifications;Transfer Switch Specifications;Dimensions;Continuous Output Power: 2000 Watts;Surge Rating: 6000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 24.0Vdc;Minimum Start Voltage: 20.0Vdc;Low Battery Alarm: 21.0Vdc-22.0Vdc;Low battery Trip: 20.0Vdc-21.0Vdc;High Voltage Alarm: 32.0Vdc;Low battery Voltage Restart: 26.6Vdc;Idle Consumption: 26.5 watts;Power Saver Mode Idle Consumption: 12.2 watts;Output voltage: Depends on Battery Type;Charger Rate: 30A;Over Charge Protection Shutdown 31.4V;Selectable Charge Setting;Adjustable Charge Current: off-20%-100%;Four Stage Smart Charger;30 amp auotmatic transfer switch;10 ms (max);Unit Weight: 50 lbs.;Unit Size L x W x H: 16.48 x 8.74 x 7.1 inches;Shipping Weight: 53 lbs.;Shipping L x W x H 23.5 x 13.0 x 12.5 inches |
| Package Quantity |
1 |
