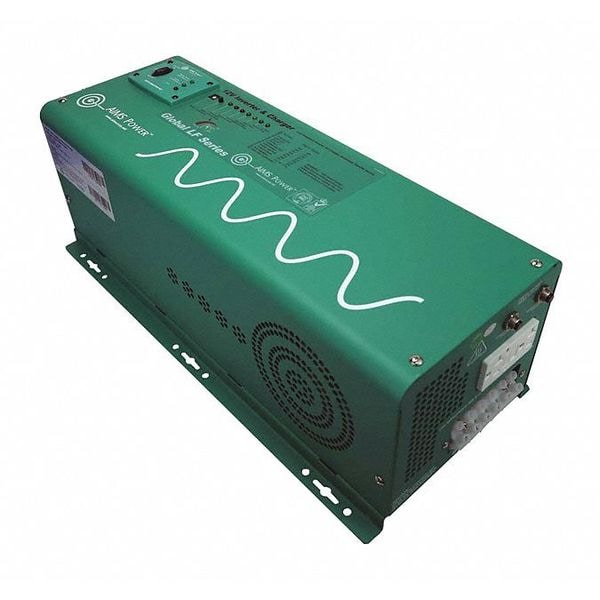

Power Inverter and Battery Charger, Pure Sine Wave, 7,500 W Peak, 2,500 W Continuous, 2 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 7,500 W |
| Continuous Output Power | 2,500 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 12V DC |
| Inverter Output Voltage | 100V/110V/120V AC |
| Outlet Type | GFCI |
| DC Connection | Terminal Bock |
| Number of Outlets | 2 |
| Features | (no dip switches, optional battery temp sensor or auto gen start);2500 watt continuous;7500 watt surge for 20 seconds 300% surge capability (don’t use the surge mode often);AC direct connect terminal block;GFCI outlet;Marine coated and protected;Multi stage smart charger 85 A;LCD or LED remote panel available (LED available in Dec.);Thermal and load based fan;Low voltage recovery;Power save mode;Auto frequency;10msec typical transfer time;Optional 25W power save mode;7 battery type settings for charger;1 year warranty and free tech support |
| Nominal Output Power | 2,500 W |
| Specification | Output Specifications: Input Specifications: Charger Specifications: Dimensions: Continuous output power: 2500 Watt;Surge rating: 7500 Watt (20 seconds);Output waveform: pure sine/same as input (bypass mode);Output voltage: 100-110-120 VAC;Nominal efficiency: >88% (peak);Line mode efficiency: >95%;Output frequency: 60Hz +/- 0.3Hz;Typical transfer time: 10ms (max);Terminal output breaker/ transfer load: 30 amps automatic;THD: < 10% DC;Nominal input voltage: 12.0 VDC;Minimum start voltage: 10.0 VDC;Low battery alarm: 10.5Vdc-11.0 VDc;Low battery trip: 10.0Vdc-10.5 VDC;High voltage alarm: 16.0 VDC;Low battery voltage restart: 15.5 VDC;Input breaker / charger breaker – 30 amps;Idle consumption: 55 watts;Power saver mode idle consumption: <21.7 watts;Output voltage: depends on battery type;Charger rate: 85 A;Unit weight: 46 lbs;Unit size: L x W x H: 21 1/2 x 8 3/4 x 7 3/8 inches;Shipping weight: 50 lbs.;Shipping size: L x W x H: 23.5 x 13.0 x 12.5 inches |
| Package Quantity | 1 |
