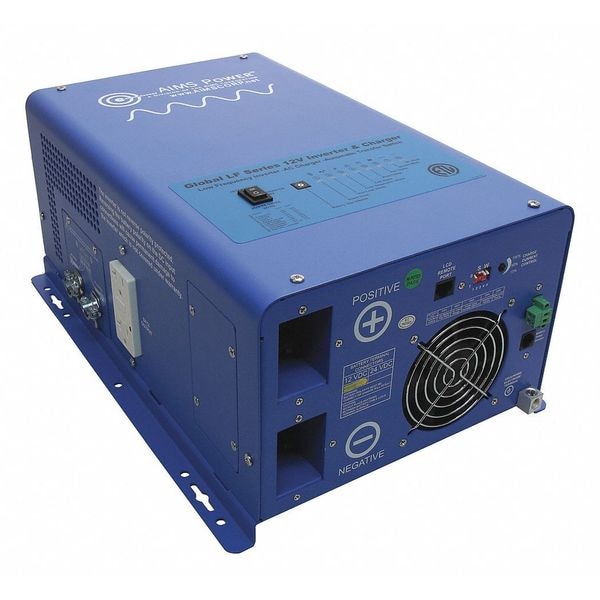

Power Inverter and Battery Charger, Pure Sine Wave, 9,000 W Peak, 3,000 W Continuous, 1 Outlets
| Item |
Power Inverter and Battery Charger |
| Peak Output Power |
9,000 W |
| Continuous Output Power |
3,000 W |
| Inverter Output Form |
Pure Sine Wave |
| Inverter Input Voltage |
12V DC |
| Inverter Output Voltage |
100V/110V/120V AC |
| Outlet Type |
GFCI |
| DC Connection |
Terminal Bock |
| Number of Outlets |
1 |
| Depth |
15.35 in |
| Height |
7 in |
| Features |
Listed to UL 458 Standards and CSA 22.2 No 107.1;3000 watt low frequency inverter;9000 watt surge for 20 seconds -3x surge capability;Battery priority selector;AC direct connect terminal block;GFCI – 20 amps;Marine coated and protected;Multi stage smart charger 100 Amp GEL, AGM, Lead and lithium LiFePO4;Remote panel available;Auto gen start;Auto frequency;10msec typical transfer time;7 battery type settings for charger;Selectable 25W power save mode (hibernation);Automatic transfer switch |
| Width |
11 in |
| Nominal Output Power |
3,000 W |
| Inveter Output Voltage |
Depends On Battery Type |
| Specification |
Inverter Output Specifications: Input Specifications: Charger Specifications: Dimensions: Listed to UL 458 Standards;Continuous Output Power: 3000 Watts;Surge Rating: 9000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Output Voltage: 100-110-120Vac;Nominal Efficiency: >92% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Bypass Terminal Breaker – 40 amps;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 12.0Vdc;Minimum Start Voltage: 10.0Vdc;Low Battery Alarm: 10.5Vdc-11.0Vdc;Low Battery Trip: 10.0Vdc-10.5Vdc;High Voltage Alarm: 16.0Vdc;Low Battery Voltage Restart: 13.3Vdc;Idle Consumption: 55 Watts;Charger Breaker – 30 amps;Power Saver Mode Idle Consumption:21.7 Watts;Output voltage: Depends on battery Type;Charger Rate: 100A;Unit Weight: 58 lbs.;Unit Size L x W x H: 15.35 X 11 X 7 inches;Shipping Weight: 66 lbs.;Shipping L x W x H: 20.5 X 13.8 X 12.2 inches |
| Package Quantity |
1 |
