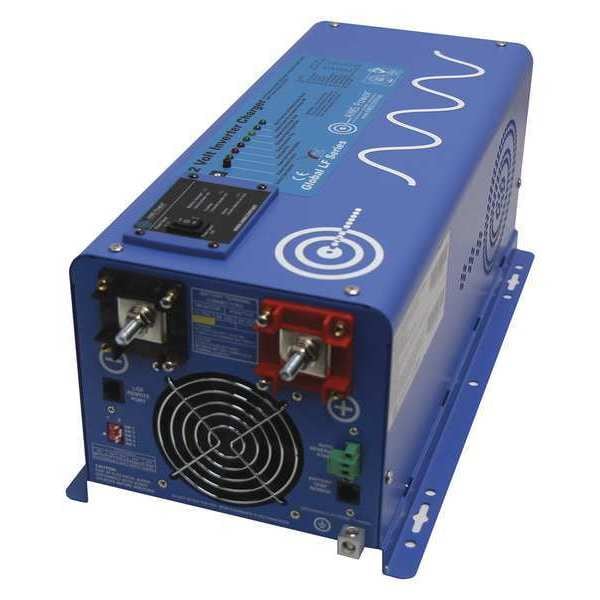

Power Inverter and Battery Charger, Pure Sine Wave, 9,000 W Peak, 3,000 W Continuous, 1 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 9,000 W |
| Continuous Output Power | 3,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 12V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | GFCI |
| DC Connection | Terminal Bock |
| Number of Outlets | 1 |
| Depth | 16.48 in |
| Features | Features: 3000 watt low frequency inverter;9000 watt surge for 20 seconds -3x surge capability;Battery priority selector;AC direct connect terminal block;GFCI – 15 amps;Marine coated and protected;Multi stage smart charger 100 Amp charges gel, AGM, lead and lithium LiFePO4;Remote panel available;Auto gen start;Auto frequency;10msec typical transfer time;Selectable 25W power save mode (hibernation);7 battery type settings for charger |
| Nominal Output Power | 3,000 W |
| Height | 7.1 in |
| Width | 8.74 in |
| Inveter Output Voltage | Depends On Battery Type |
| Specification | Continuous Output Power: 3000 Watts;Surge Rating: 9000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);Bypass Terminal Breaker: 40 amps;THD: < 10% DC;Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 12.0Vdc;Minimum Start Voltage: 10.0Vdc;Low Battery Alarm: 10.5Vdc-11.0Vdc;Low Battery Trip: 10.0Vdc-10.5Vdc;High Voltage Alarm: 16.0Vdc;Low Battery Voltage Restart: 13.3Vdc;Charger Breaker – 30 amps;Idle Consumption: 55 Watts;Power Saver Mode Idle Consumption: 21.7 Watts;Output voltage: Depends on battery Type;Charger Rate: 100A;Unit Weight: 58 lbs.;Unit Size L x W x H: 16.48 x 8.74 x 7.1 inches;Shipping Weight: 64 lbs.;Shipping L x W x H 23.5 x 13.0 x 12.5 inches |
| Package Quantity | 1 |
