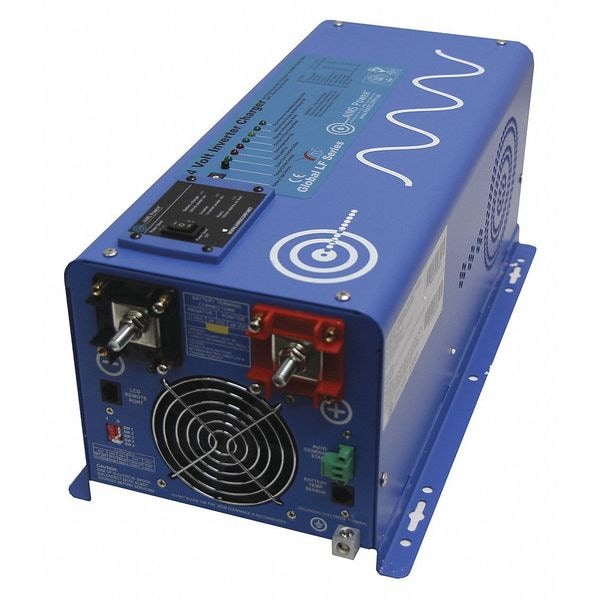

Power Inverter and Battery Charger, Pure Sine Wave, 9,000 W Peak, 3,000 W Continuous, 2 Outlets
| Item | Power Inverter and Battery Charger |
|---|---|
| Peak Output Power | 9,000 W |
| Continuous Output Power | 3,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 24V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | GFCI, Hardwired |
| DC Connection | Terminal Posts |
| Number of Outlets | 2 |
| Automatic/Manual | Automatic |
| Inverter Width | 8.7 in |
| Charger Output Voltage | 120V |
| Charger Input Voltage | 120 V AC |
| Application | Emergency Back Up/ Off-Grid |
| Charger Height | 7.1 in |
| Charger Depth | 16-1/2 in |
| Inverter Height | 7.1 in |
| Inverter Depth | 16-1/2 in |
| Charger Output Amps | 30 |
| Nominal Output Power | 3,000 W |
| Charger Input Amps | 12.5 |
| Charger Width | 8.7 in |
| Case Material | Sheet Metal |
| Standards | ISO-9001 |
| Width | 8.74 in |
| Height | 7.1 in |
| Depth | 16.48 in |
| Features | Auto Frequency |
| Weight | 56 lb |
| Inveter Output Voltage | Depends On Battery Type |
| Output Frequency | 52 +/- 2.3Hz or 60 +/- 2.3Hz selectable |
| Number of USB Ports | 0 |
| Number of USB-C Ports | 0 |
| Charger DxWxH | 16-1/2 in x 8.7 in x 7.1 in |
| Charger Input Current | 12.5 A |
| Connection Location | connects to battery bank and requires 150 A fuse |
| Input Voltage | 20 to 32 VDC |
| Output Voltage | 120 V AC |
| Efficiency | 88% |
| Charger Output Current | 30 A |
| Specification | SpecificationsInverter Output Specifications: Input Specifications;Charger Specifications;Dimensions;Continuous Output Power: 3000 Watts;Surge Rating: 9000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 24.0Vdc;Minimum Start Voltage: 20.0Vdc;Low Battery Alarm: 21.0Vdc-22.0Vdc;Low Battery Trip: 20.0Vdc-21.0Vdc;High Voltage Alarm: 32.0Vdc;Low Battery Voltage Restart: 26.6Vdc;Idle Consumption: 46.5 Watts;Power Saver Mode Idle Consumption: 18.9 Watts;Output Voltage: Depends on battery Type;Charger Rate: 40A;Unit Weight: 56 lbs.;Unit Size L x W x H: 16.48 x 8.74 x 7.1 inches;Shipping Weight: 64 lbs.;Shipping L x W x H 23.5 x 13.0 x 12.5 inches |
| Cooling Method | Forced Air |
| Package Quantity | 1 |
