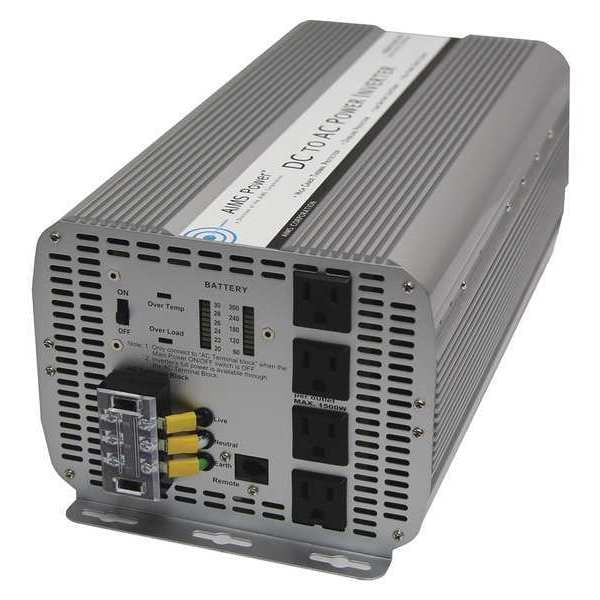

Power Inverter, Modified Sine, 1,0000 W Peak, 5,000 W Continuous, 4 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 10,000 W |
| Continuous Output Power | 5,000 W |
| Inverter Output Form | Modified Sine |
| Inverter Input Voltage | 20 to 32V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong / Hardwire |
| DC Connection | Battery Cables |
| Number of Outlets | 4 |
| Nominal Output Power | 5,000 W |
| Case Material | Aluminum |
| Height | 6.1 in |
| Depth | 16.92 in |
| Width | 7.95 in |
| Features | Features: 5000W max continuous power;Modified sine wave;Volt meter on front panel to monitor your battery voltage;Amp meter on front panel to monitor your current use (rate at which battery is drained);AC Direct Connect Terminal;Over Temperature LED indicator;Over Load LED indicator;Quadruple ac receptacle that can be used with any separate spliter to provide even more outlets;On/off switch;Over Temperature protection;Over Load protection;Single cooling fan operation thermally controlled;Internally fuse protected;ac output short circuit protection;Auto reset on most fault conditions;Aluminum case for optimal cooling;Pre-wired for remote on/off switch;Pre-slotted mounting plate;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor |
| Inveter Output Voltage | 120V AC |
| Specification | Specifications: Continuous output power: 5000 Watts;Surge power capability (peak power): 10,000 Watts;dc input / operating voltage: 34 to 20 Volts;Output voltage: 120 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 60 Hz +/- 1 Hz;Battery low voltage alarm: 21.0 +/- 0.5 Volts;Battery low voltage shutdown: 20.0 +/- 0.5 Volts;No load current @ 24V: < 0.4 Amps;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: -15 degrees Celsius;Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown);No load draw: Switch on – <1 amp DC. Switch off - <.2 mADC;AC Output Socket Type: quadruple Type 2 -3 prong;High input voltage protection: 34.5V;Low input voltage shutdown: 20.0V;Internal fuse protection;Product size (L x W x H): 16.92"X 7.95"X 6.1";Unit Weight 16.72 lbs;Boxed Weight 20 lbs;UL maximum recommended per outlet 1500W |
| Package Quantity | 1 |
