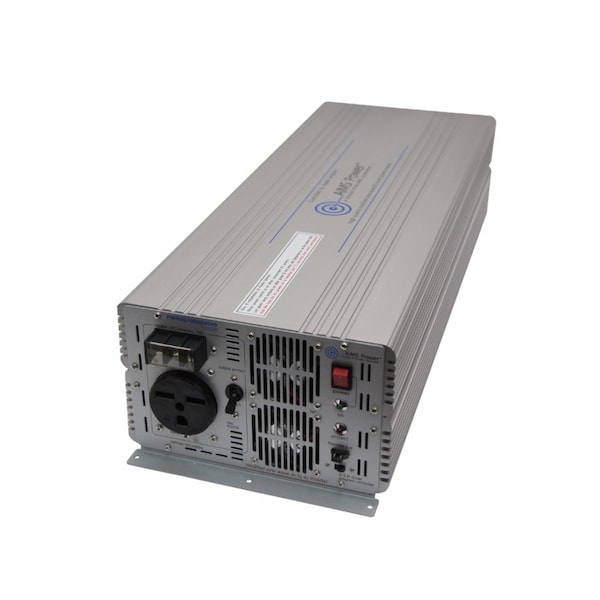

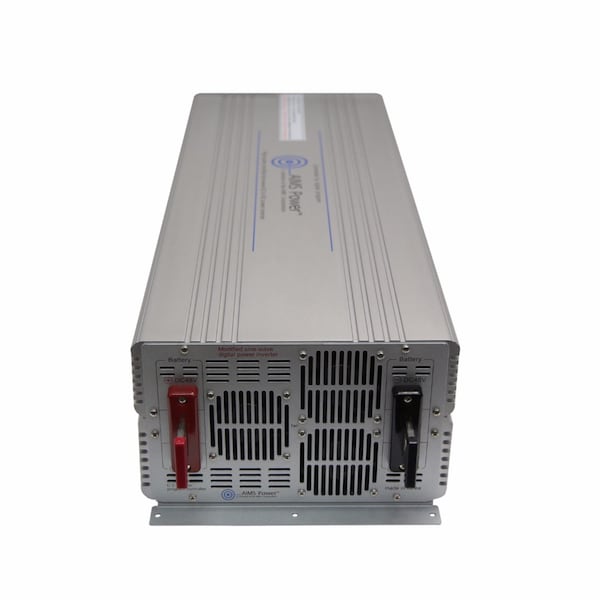

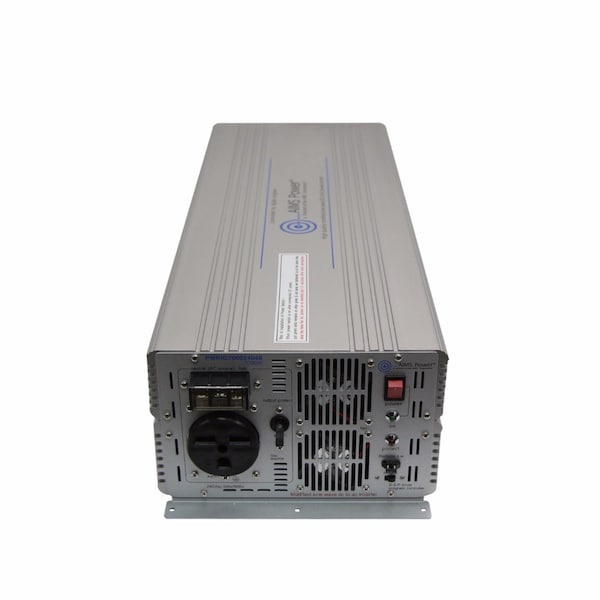

Power Inverter, Modified Sine, 14,000 W Peak, 7,000 W Continuous, 1 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 14,000 W |
| Continuous Output Power | 7,000 W |
| Inverter Output Form | Modified Sine |
| Inverter Input Voltage | 48V DC |
| Inverter Output Voltage | 240V AC |
| Outlet Type | Hardwired |
| DC Connection | Battery Cables |
| Number of Outlets | 1 |
| Case Material | Aluminum |
| Length | 21.26 in |
| Includes | Power Inverter |
| Height | 5.35 in |
| Width | 8.43 in |
| Depth | 21.26 in |
| Standards | N/A |
| Application | Recreation, industrial applications, or off-grid home and solar power needs |
| Nominal Output Power | 7,000 W |
| Features | 7000W max continuous power, Modified sine wave, Power switch LED is also a self test light – Green, Overload fail LED – Red, Over Temperature LED indicator, Over Load LED indicator, 1 ac receptacles universal 240 volt, Direct connect terminal block for full load applications, On/off switch, Over Temperature protection, Over Load protection, Thermally controlled fan, DC volt Meter – Input meter, Percent load usage LED bar, Externally located re-settable circuit breakers, ac output short circuit protection, Aluminum case for optimal cooling, Pre-wired for remote on/off switch, Pre-slotted mounting plate, Instruction manual, Free 1 year tech support |
| Inveter Output Voltage | 240V AC |
| Specification | Specifications: Continuous output power: 7000 Watts;Surge power capability (peak power): 14,000 Watts;The surge duration is electronically controlled and permits up to 9 seconds while the output is between 7000 and 14,000 watts. During this time the buzzer will sound until the inverter electronically shuts down.;dc input / operating voltage: 42-60 Volts;Output voltage: 240 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 50/60 Hz +/- 1 Hz;Battery low voltage alarm: 42 +/- 0.5 Volts;Battery low voltage shutdown: 41.5 +/- 0.5 Volts;High input voltage protection 60 +/-0.5 volts;No load current: 0.18 A (fan off) 0.66 A (fan on);Start up AC amps: 58;Continuous AC amps: 29;Full load efficiency: 90%;Auto Cooling Fan Start at 107 degrees F;Full load maximum operating temperature: 154 degree F;AC Output Socket Type: single Type 240 volt plug;Internal fuse protection;Product size (D x W x H): 21.26" X 8.43" X 5.35";Weight: 31 lbs |
| Color | Gray |
| Package Quantity | 1 |
