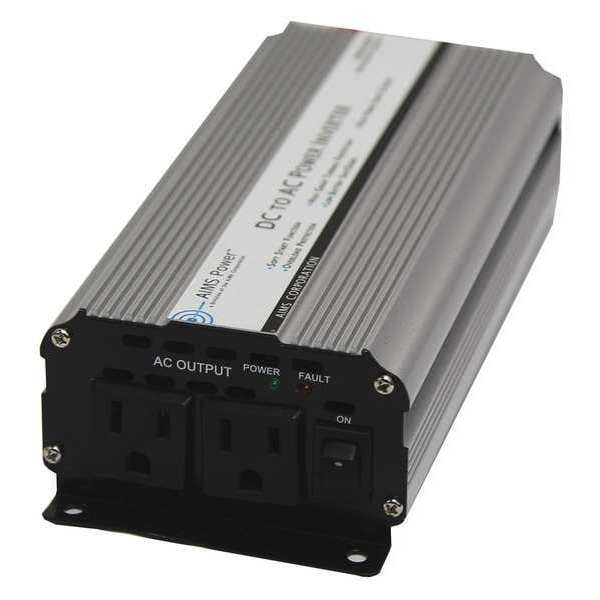

Power Inverter, Modified Sine Wave, 1,600 W Peak, 800 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 1,600 W |
| Continuous Output Power | 800 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 10 to 15V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | 2 to 3-Prong Outlet |
| DC Connection | Battery Cables |
| Number of Outlets | 2 |
| Width | 3-1/2 in |
| Depth | 9-1/4 in |
| Nominal Output Power | 800 W |
| Features | Features: 800 watt continuous power;Modified sine wave;LED: Green power on and red heavy load/fault condition;Dual ac receptacle;On/off switch;Over Temperature protection;Over Load protection;Convenient cooling fan operation;Cables included for direct connect to battery. 40" 8 awg.;Internally fuse protected;ac output short circuit protection;Aluminum case for optimal cooling;Pre-slotted mounting plate;Isolated ground neutral;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor |
| Height | 2-1/4 in |
| Inveter Output Voltage | 120V AC |
| Specification | Specifications: Continuous output power: 800 Watts;Surge power capability (peak power): 1600 Watts not meant for start up applications;Short circuit protection;dc input / operating voltage: 10 to 15 Volts · Output voltage: 120 Volts ac;Output wave form: modified sine wave;Output frequency: 60 Hz;Battery low voltage alarm: 10.5 +/- 0.5 Volts;Battery low voltage shutdown: 10.0 +/- 0.5 Volts;No load current @ 12V: < 0.7 dc Amps;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: -15 degrees Celsius;Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown);AC Output Socket Type: dual Type 2 -3 prong;High input voltage protection: 15.5V;Low input voltage shutdown: 10.5V;Internal fuse protection;Product size (L x W x H): 9.25"X 3.5"X 2.25";Unit Weight: 2.6 lbs;Boxed Weight: 4.0 lbs |
| Package Quantity | 1 |
