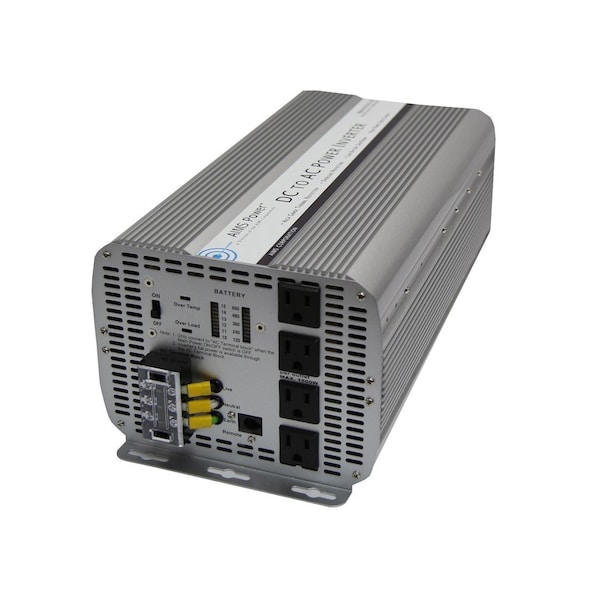

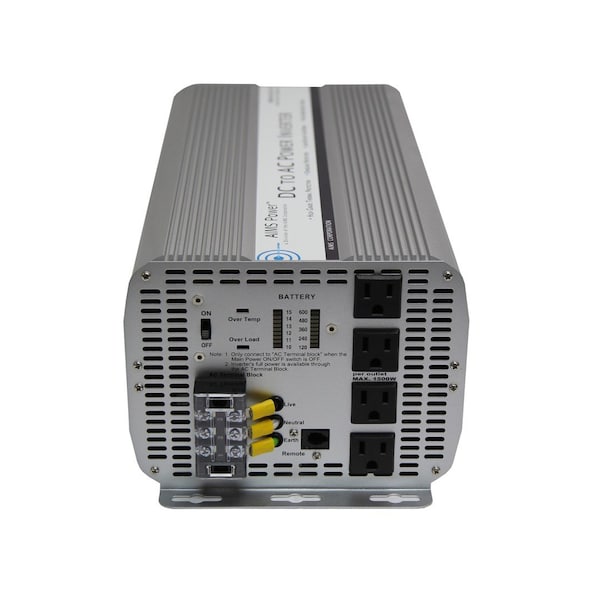

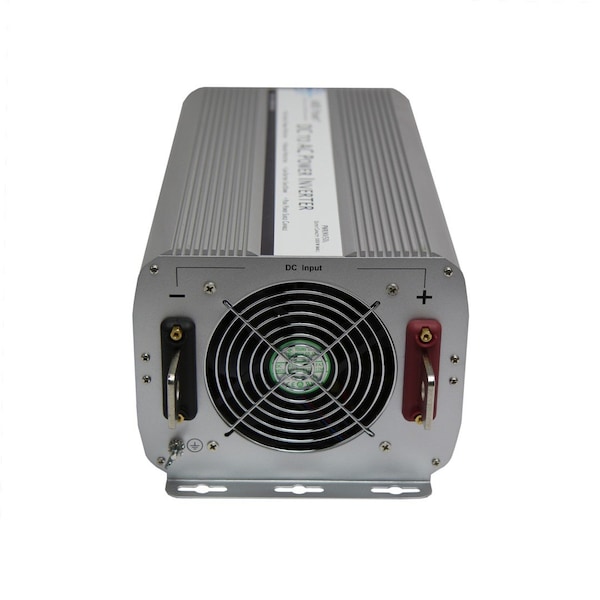

Power Inverter, Modified Sine Wave, 10,000 W Peak, 5,000 W Continuous, 4 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 10,000 W |
| Continuous Output Power | 5,000 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 30 to 48V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Terminal Bock |
| Number of Outlets | 4 |
| Nominal Output Power | 5,000 W |
| Application | Off-grid back-up power at home, cabin, boat, larger solar systems or anywhere that doesn't have city power |
| Features | 5000 Watt max continuous power, 36 Volt Power Inverter, Modified sine wave, Volt meter on front panel to monitor your battery voltage, Amp meter on front panel to monitor your current use (rate at which battery is drained), AC Direct Connect Terminal, Over Temperature LED indicator, Over Load LED indicator, Quadruple ac receptacle that can be used with any separate spliter to provide even more outlets, On/off switch, Over Temperature protection, Over Load protection Single cooling fan operation thermally controlled Internally fuse protected ac output short circuit protection, Auto reset on most fault conditions, Aluminum case for optimal cooling, Pre-wired for remote on/off switch, Pre-slotted mounting plate, Instruction manual, Free 1 year tech support, 1 Year Warranty Parts and Labor |
| Height | 6.1 in |
| Depth | 16.92 in |
| Case Material | Aluminum |
| Length | 16-3/4 in |
| Includes | Power Inverter |
| Standards | N/A |
| Width | 7.95 in |
| Inveter Output Voltage | 120V AC |
| Output Frequency | 60 Hz +/- 1 Hz |
| Specification | Specifications;Continuous output power: 5000 Watts;Surge power capability (peak power): 10,000 Watts;dc input / operating voltage: 30 to 48 Volts;Output voltage: 120 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 60 Hz +/- 1 Hz;Battery low voltage alarm: 31 +/- 0.5 Volts;Battery low voltage shutdown: 28 +/- 0.5 Volts;No load current: < 0.9 Amps;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: -15 degrees Celsius;Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown);AC Output Socket Type: quadruple Type 2 -3 prong;High input voltage protection: 48 volts;Low input voltage shutdown: 28 volts;Internal fuse protection;Product size (L x W x H): 16.92"X 7.95"X 6.10";Weight: unit 16.72 lbs boxed 20 lbs;UL maximum recommended per outlet 1500W |
| Color | Gray |
| Package Quantity | 1 |
