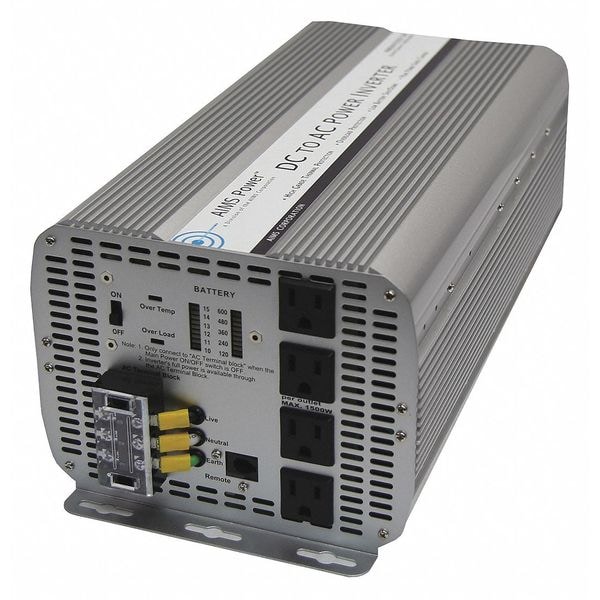

Power Inverter, Modified Sine Wave, 10,000 W Peak, 5,000 W Continuous, 4 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 10,000 W |
| Continuous Output Power | 5,000 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 39 to 64V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Terminal Bock |
| Number of Outlets | 4 |
| Case Material | Aluminum |
| Height | 6.1 in |
| Depth | 16.93 in |
| Features | Features;5000 Watt max continuous power;48 Volt Power Inverter;Modified sine wave;Volt meter on front panel to monitor your battery voltage;Amp meter on front panel to monitor your current use (rate at which battery is drained);AC Direct Connect Terminal;Over Temperature LED indicator;Over Load LED indicator;Quadruple ac receptacle that can be used with any separate spliter to provide even more outlets;On/off switch;Over Temperature protection;Over Load protection;Single cooling fan operation thermally controlled;Internally fuse protected;AC output short circuit protection;Auto reset on most fault conditions;Aluminum case for optimal cooling;Pre-wired for remote on/off switch;Pre-slotted mounting plate;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor |
| Width | 7.95 in |
| Nominal Output Power | 5,000 W |
| Inveter Output Voltage | 120V AC |
| Specification | Specifications;Continuous output power: 5000 Watts;Surge power capability (peak power): 10,000 Watts;dc input / operating voltage: 39 to 64 Volts;Output voltage: 120 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 60 Hz +/- 1 Hz;Battery low voltage alarm: 40 +/- 0.5 Volts;Battery low voltage shutdown: 38 +/- 0.5 Volts;No load current: < 0.2 Amps;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: -15 degrees Celsius;Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown);AC Output Socket Type: quadruple Type 2 -3 prong;High input voltage protection: 64 volts;Low input voltage shutdown: 38 volts;Internal fuse protection;Product size (L x W x H): 16.93"X 7.95"X 6.10";Weight: unit 16.72 lbs boxed 20 lbs;UL maximum recommended per outlet 1500W |
| Package Quantity | 1 |
