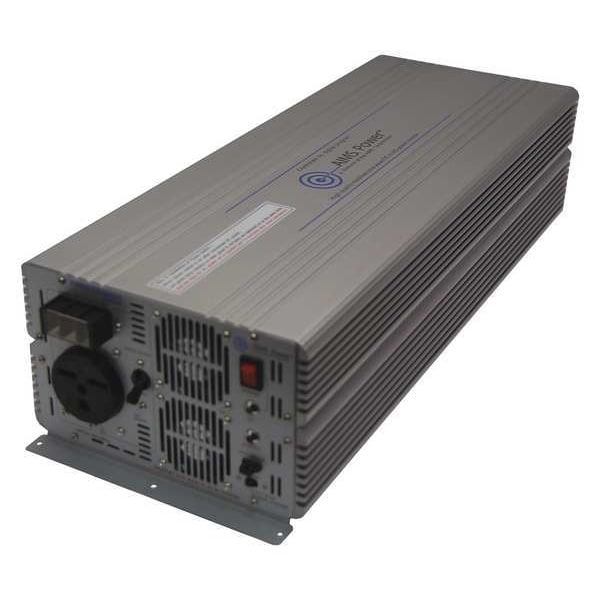

Power Inverter, Modified Sine Wave, 14,000 W Peak, 7,000 W Continuous, 1 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 14,000 W |
| Continuous Output Power | 7,000 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 20 to 30V DC |
| Inverter Output Voltage | 247V AC |
| Outlet Type | Hardwired |
| DC Connection | Terminal Posts |
| Number of Outlets | 1 |
| Nominal Output Power | 7,000 W |
| Case Material | Aluminum |
| Height | 5.35 in |
| Width | 8.43 in |
| Depth | 21.26 in |
| Power Factor | 82% |
| Includes | Pre-Slotted Mounting Plate |
| Application | Industrial Applications, Off-Grid Home, Recreation, Solar Power Needs |
| Features | AC Output Short Circuit Protection, Direct Connect Terminal Block for Full Load Applications, Externally Located Re-Settable Circuit Breakers, On/Off Switch, Over Load LED Indicator, Over Load Protection, Over Temperature LED Indicator, Over Temperature Protection, Overload Fail LED - Red, Percent Load Usage LED Bar, Pre-Wired for Remote On/Off Switch, Thermally Controlled Fan |
| Overall Width | 8-3/8 in |
| Overall Height | 5-3/8 in |
| Inveter Output Voltage | 247V AC |
| Output Frequency | 50/60 Hz |
| Output Voltage | 247 V AC |
| Minimum Operating Temperature | -13 deg F |
| Output Connection | NEMA 6-30R; Terminal Block |
| Overall Depth | 21-1/4 in |
| Input Current | 345 A |
| Phase | Single Phase |
| Input Voltage | 20 to 30V DC |
| Fused | Yes |
| NEMA Rating | NEMA 1 |
| IP Rating | IP20 |
| Input Connection | Input Terminals |
| Efficiency | 90% |
| Type of Indicator | LED |
| Number of USB-C Ports | 0 |
| Output Current | 29 A, 58 A |
| Temperature Rise | 115 deg F |
| Inverter DxWxH | 21-1/4 in x 8-3/8 in x 5-3/8 in |
| Number of USB Ports | 0 |
| Output Form | Modified Sine Wave |
| Maximum Operating Temperature | 163 deg F |
| Specification | Specifications: The surge duration is electronically controlled and permits up to 9 seconds while the output is between 7000 and 14000 watts. During this time the buzzer will sound until the inverter electronically shuts down.;Continuous output power: 7000 Watts;Surge power capability (peak power): 14000 Watts;dc input / operating voltage: 20-30 Volts;Output voltage: 247 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 50/60 Hz +/- 1 Hz;Battery low voltage alarm: 20 +/- 0.5 Volts;Battery low voltage shutdown: 19.5 +/- 0.5 volts;High input voltage protection 34 +/-0.5 volts;No load current: 200mA;Start up AC amps: 58;Continuous AC amps: 29;Full load efficiency: 90%;Auto Cooling Fan Start at 107 degrees F;Full load maximum operating temperature: 163 degree F;AC Output Socket Type: single 240 volt plug;Internal fuse protection;Product size (D x W x H): 21.26" X 8.43" X 5.35";Weight: 26.5 lbs |
| Package Quantity | 1 |
