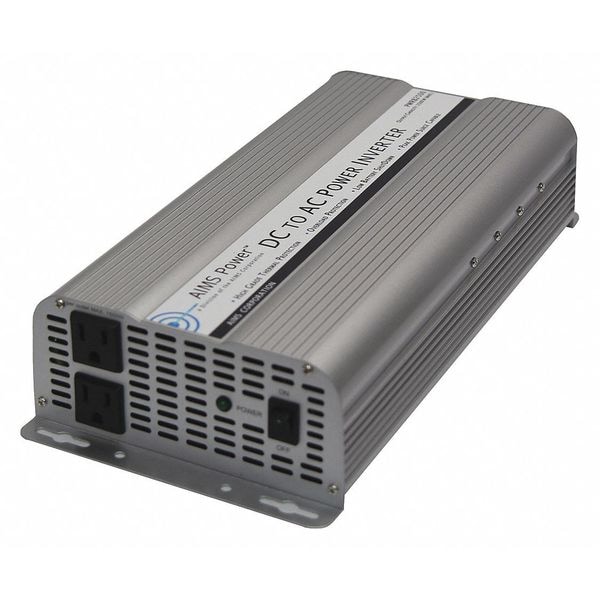

Power Inverter, Modified Sine Wave, 5,000 W Peak, 2,500 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 5,000 W |
| Continuous Output Power | 2,500 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 10 to 15V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Battery Cables |
| Number of Outlets | 2 |
| Nominal Output Power | 2,500 W |
| Height | 3 in |
| Width | 6-1/2 in |
| Depth | 14-1/2 in |
| Features | Features: 2500W max continuous power;Modified sine wave;Over Temperature protection;Over Load protection;Dual ac receptacle that can be split with a separate spliter if extra outlets are needed;On/off switch;Convenient always on dual cooling fan operation;Internally fuse protected;ac output short circuit protection;Auto reset on most fault conditions;Battery terminals are designed to conduct more current therefore requiring only one set of cables.;Aluminum case for optimal cooling;Pre-slotted mounting plate;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor |
| Case Material | Aluminum |
| Inveter Output Voltage | 120V AC |
| Specification | Specifications: Continuous output power: 2500 Watts. Use 200 amp inline fuse.;Surge power capability (peak power): 5000 Watts;dc input / operating voltage: 10 to 15 Volts;Output voltage: 120 Volts ac +/- 10%;Output wave form: modified sine wave with phase correction;Output frequency: 60 Hz +/- 1 Hz;Battery low voltage alarm: 10.5 +/- 0.5 Volts;Battery low voltage shutdown: 10.0 +/- 0.5 Volts;AC amps: 21;DC amps: 208;No load current: 2.5 Amps with switch in the on position (because fans are always on) See PWRINV2500 if you don’t want always on fans.;Full load efficiency: 90%;1/3 load efficiency: 95%;No load minimum operating temperature: -15 degrees Celsius;Full load maximum operating temperature: 55 +/- 5 degrees Celsius (automatic shutdown);AC Output Socket Type: dual Type 2 -3 prong;High input voltage protection: 15V-17V;Low input voltage shutdown: 10V;Internal fuse protection;Product size (L x W x H): 14.5"X 6.5"X 3.0";Unit Weight: 6.1 lbs Boxed Weight: 8 lbs;UL maximum recommended per outlet 1500W |
| Package Quantity | 1 |
