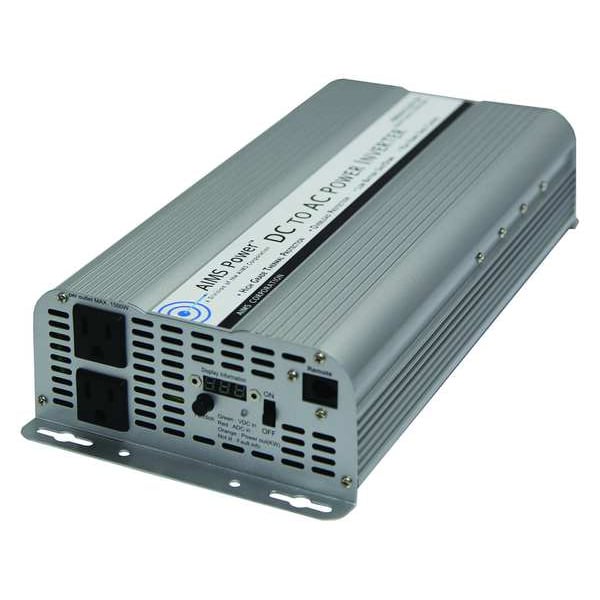

Power Inverter, Modified Sine Wave, 5,000 W Peak, 2,500 W Continuous, 2 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 5,000 W |
| Continuous Output Power | 2,500 W |
| Inverter Output Form | Modified Sine Wave |
| Inverter Input Voltage | 10.5 to 17V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Standard 3-Prong Outlet |
| DC Connection | Terminal Posts |
| Number of Outlets | 2 |
| Height | 3 in |
| Depth | 14-1/2 in |
| Output Frequency | 60 Hz |
| Nominal Output Power | 2,500 W |
| Width | 6-1/2 in |
| Case Material | Aluminum |
| Includes | Pre-Slotted Mounting Plate |
| Application | Boats, Cars, Coffee Makers, Off-Grid Mobile and Emergency Backup Power for Lights, Fans and Space Heaters, RVs, Trucks |
| Features | AC Output Short Circuit Protection, Amp Meter on Front Panel to Monitor Current Use, Auto Reset On Most Fault Conditions, On/Off Switch, Over Load LED Indicator, Over Load Protection, Over Temperature LED Indicator, Over Temperature Protection, Pre-Wired for Remote On/Off Switch, Single Cooling Fan Operation Thermally Controlled, Volt Meter On Front Panel to Monitor Battery Voltage |
| Power Factor | 82% |
| Overall Height | 3 in |
| Overall Width | 6-1/2 in |
| Inveter Output Voltage | 120V AC |
| Input Voltage | 10.5 to 17V DC |
| Inverter DxWxH | 14-1/2 in x 6-1/2 in x 3 in |
| Input Current | 246 A |
| Output Voltage | 120 V AC |
| Output Form | Modified Sine Wave |
| Type of Indicator | LED |
| Input Connection | Input Terminals |
| Phase | Single Phase |
| Output Current | 15 A, 20.8 A, 41.7 A |
| Maximum Operating Temperature | 131 deg F |
| IP Rating | IP20 |
| Number of USB-C Ports | 0 |
| NEMA Rating | NEMA 1 |
| Overall Depth | 14-1/2 in |
| Number of USB Ports | 0 |
| Fused | Yes |
| Minimum Operating Temperature | 5 deg F |
| Efficiency | 90% |
| Output Connection | (2) NEMA 5-15R |
| Temperature Rise | 115 deg F |
| Specification | Weight: unit 10 lbs boxed 12 lbs;UL maximum recommended per outlet 1500W |
| Package Quantity | 1 |
