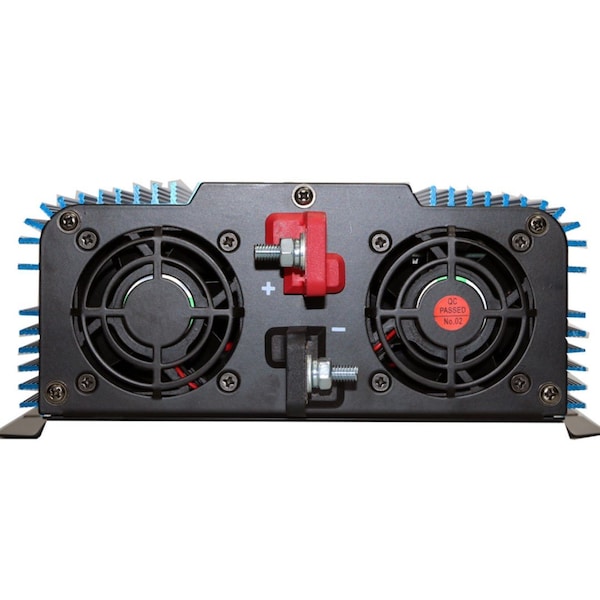

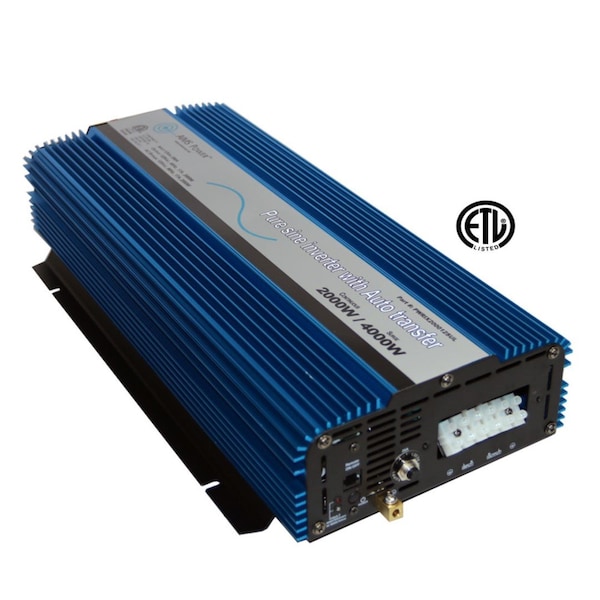

Power Inverter, Pure Sine Wave, 4,000 W Peak, 2,000 W Continuous
| Item | Power Inverter |
|---|---|
| Peak Output Power | 4,000 W |
| Continuous Output Power | 2,000 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 10 to 16V DC; 120V AC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Hardwired |
| DC Connection | Terminal Bock |
| Includes | Power Inverter |
| Application | RVs, boats or mobile businesses that need power for medium size devices |
| Features | Pure sine, ETL listed and conforms to UL458 standards, Hard wire direct connect terminal block for AC, 2000 watt continuous power, 4000 watt surge, Over voltage shutdown, Bypass whether inverter is on or off, Under voltage shutdown, Intelligent cooling fan, Automatic transfer switch 25 amps, Conformal coated for marine applications, AC pass through without being turned on or connected to a battery bank, 25A resettable AC breaker, No programming or DIP switch changes needed for operation, Remote switch available, Less than 20msec typical transfer time, 2 year warranty, , , , |
| Length | 21-1/2 in |
| Depth | 3-1/2 in |
| Nominal Output Power | 2,000 W |
| Width | 9-1/2 in |
| Standards | UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B |
| Specification | Specifications: Optional RemotePart # REMOTEHF Optional Remote on/off switch (new flush mount design)Dip switches to black out the lights if preferred.L x W x H: 3 x 2.06 x 1;2000 watts continuous;4000 watt surge (not recommended for start up applications);Built in automatic transfer switch 25 amp transfer <20 msec;Bypass/throughput = 25 amps. Do not exceed, damage may occur and void warranty.;DC input voltage 10-16V;AC input voltage 120VAC +/-10%;Output voltage 120VAC, 60HZ;Efficiency 86-90%;THD: <3%;Over voltage shutdown 16VDC +/- .5V;Under voltage shutdown 10VDC +/- .5V;Under voltage alarm 10.3VDC +/- .3V;Over temp protection 150 degrees F +/- 5 degrees F;Thermal fan;Pure sine output;No load current: 1.2A;Direct connect terminal block;L x W x H: 21.5" x 9.5" x 3.8";Unit – 14.4 lbs;Boxed – 18 lbs |
| Color | Blue |
| Switch | Built in automatic transfer switch 25 amp transfer <20 msec |
| Bypass/Throughput | 25 A (Do not exceed, damage may occur and void warranty) |
| Package Quantity | 1 |
