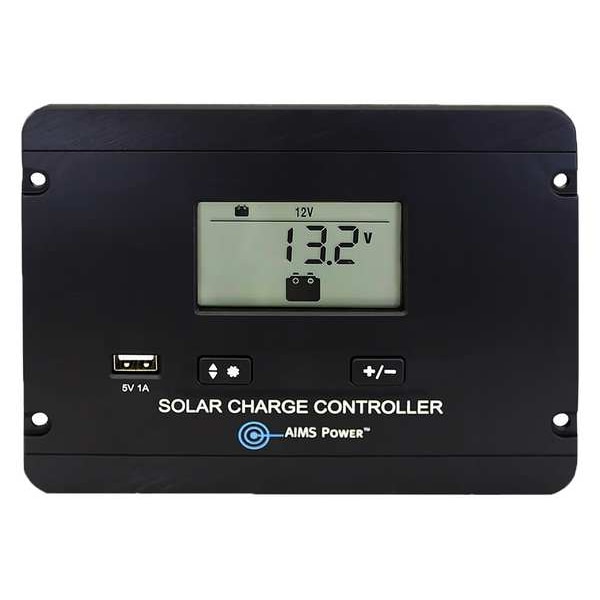

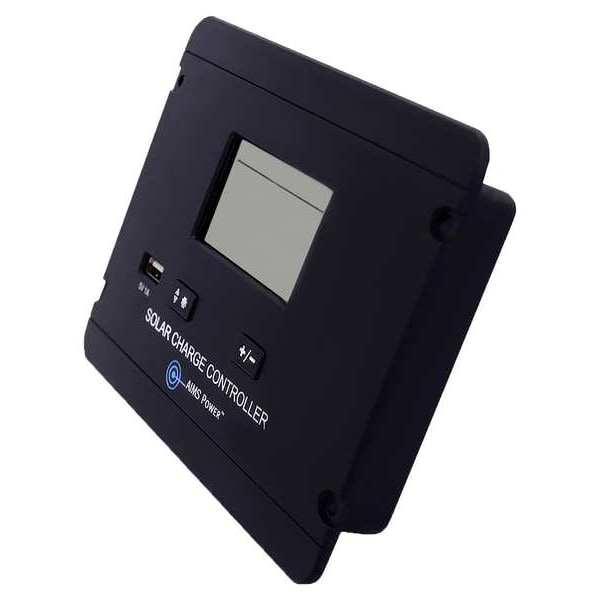

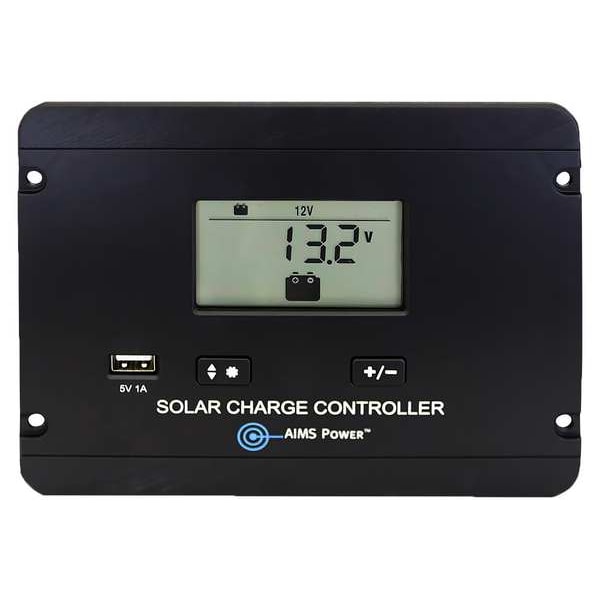

Solar Charge Cntrllr, 30A, 24 V DC, 15 V DC
| Item | Solar Charge Controller |
|---|---|
| Height | 3/4 in |
| Width | 5-1/8 in |
| Max. Solar Input Voltage | 24 V DC |
| Max. Battery Charging Voltage | 15 V DC |
| Features | Conformal Coated for Marine Environments, Flush Mount Design, Included Mounting Bracket for Flat Mount, LCD Display, PV Input and Battery Output Ports, USB Outlet |
| Max. Current | 30 A |
| IP Rating | IP32 |
| Operating Temp. | -31 to 113 deg F |
| Depth | 3-1/2 in |
| No-Load Loss | 12 mA @ 24V, 8 mA @ 12V |
| Battery Type | AGM, Flooded Lead Acid, Gel Cell, Lithium-Ion, Sealed Lead Acid |
| Overall Width | 6.6 in |
| Maximum Battery Charging Voltage | 15 V DC |
| Minimum Operating Temperature | -31 deg F |
| Maximum Current | 30 A |
| Maximum Solar Input Voltage | 24 V DC |
| Maximum Operating Temperature | 113 deg F |
| Compatible with Brand | AIMS Power |
| Overall Height | 5.12 in |
| Overall Depth | 1.8 in |
| Package Quantity | 1 |
